Second Row Seat Backrest Cover - Project 8 (G2248105): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Remove the second row seat backrest.

    Refer to: SECOND ROW SEAT BACKREST - PROJECT 8

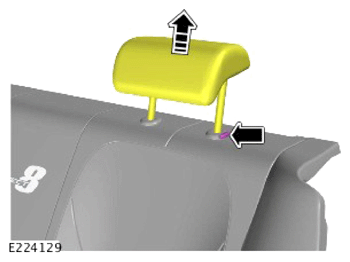

  2. G14010975Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the second row head restraint.

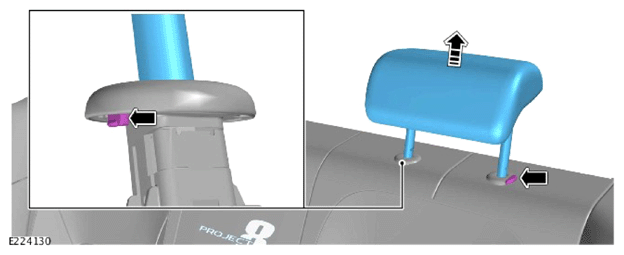

  3. G14010976Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the second row head restraint.

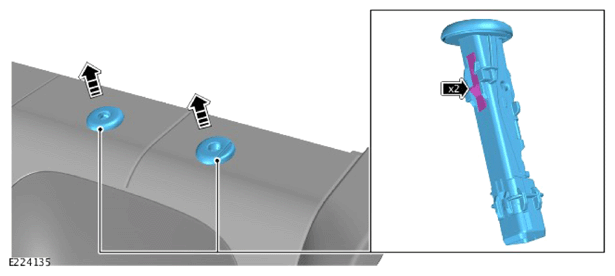

  4. G14010977Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 2 clips.
    • Remove the head restraint guide.

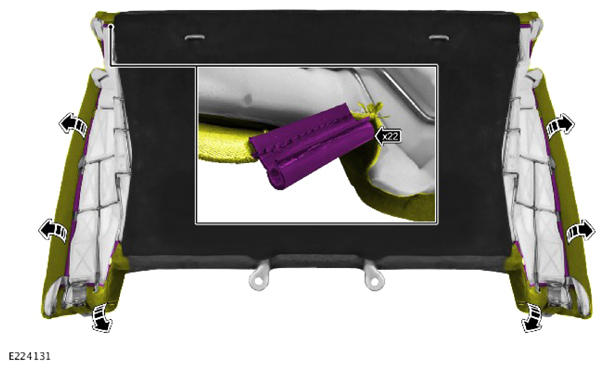

  5. G14010978Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 22 clips.

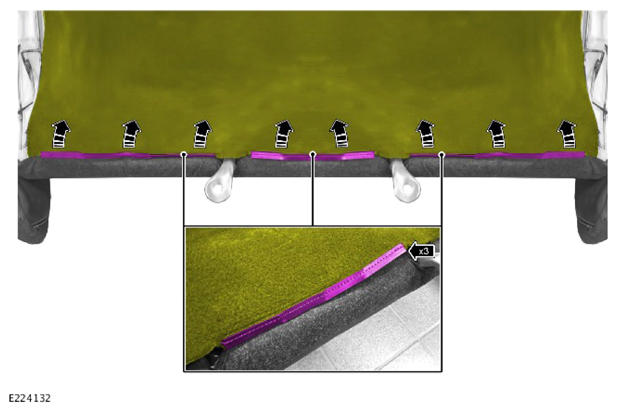

  6. G14010979Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 3 clips.

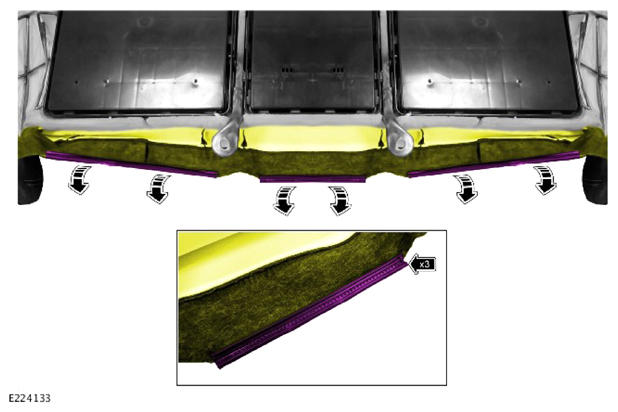

  7. G14010980Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 3 clips.

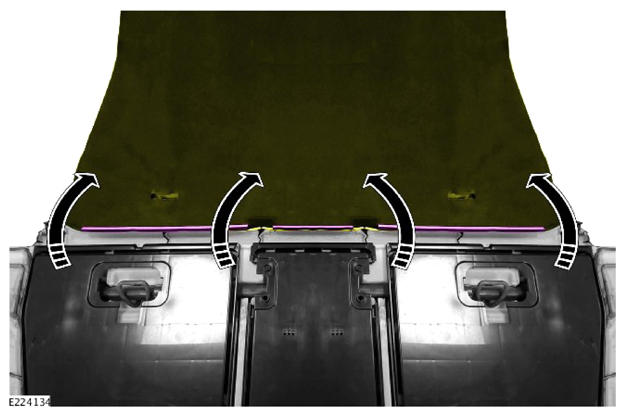

  8. G14010981Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the 3 clips.

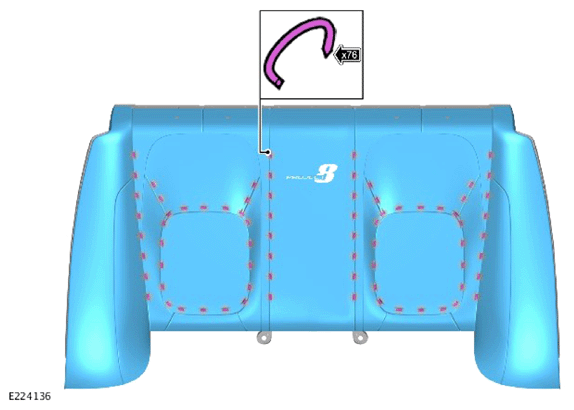

  9. G14010982Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 76 hog rings.
    • Remove the second row seat backrest cover.
