Second Row Seat Backrest Cover - Project 8 (G2248105): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

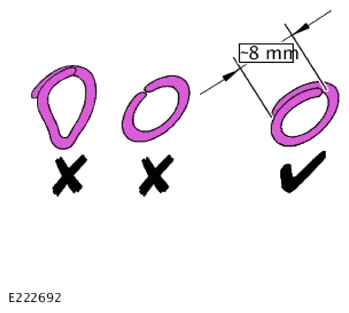

- Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
- Make sure that new hog rings are installed.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

General Equipment: Hog ring pliers
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the second row seat backrest cover.

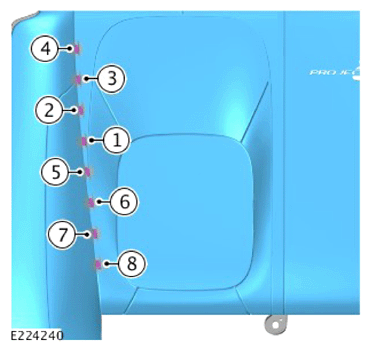

- Install 8 new hog rings in the sequence illustrated.
Renew Part: Hog rings Quantity: 8 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

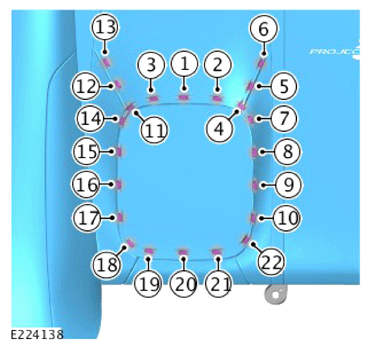

Install 22 new hog rings in the sequence illustrated.

Renew Part: Hog rings Quantity: 22 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

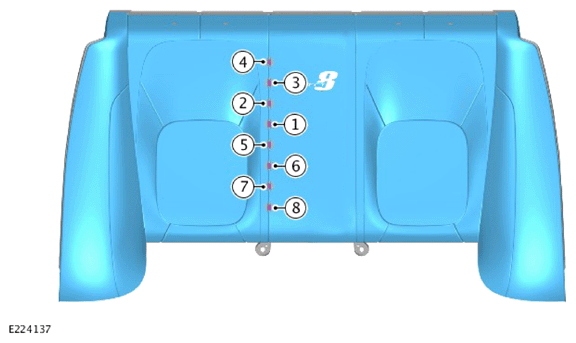

Install 8 new hog rings in the sequence illustrated.

Renew Part: Hog rings Quantity: 8 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

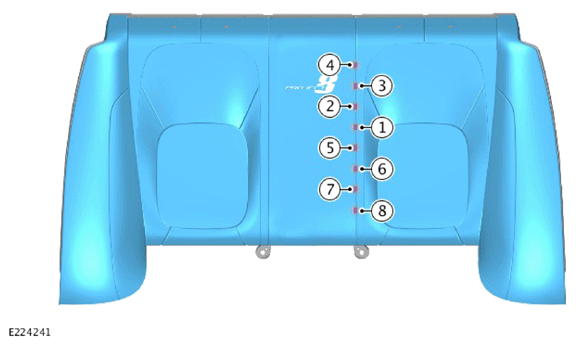

Install 8 new hog rings in the sequence illustrated.

Renew Part: Hog rings Quantity: 8 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

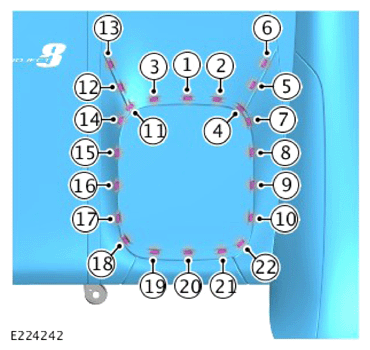

Install 22 new hog rings in the sequence illustrated.

Renew Part: Hog rings Quantity: 22 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

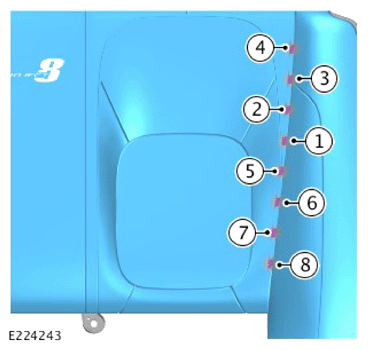

Install 8 new hog rings in the sequence illustrated.

Renew Part: Hog rings Quantity: 8 .
Install the 31 backrest cover clips reversing the sequence shown in 8. the removal steps.
Install the 4 head 9. restraint guides.
Install the second row head restraints.
Install the second row seat backrest.

Refer to: SECOND ROW SEAT BACKREST - PROJECT 8
