Second Row Seat Backrest - Project 8 (G2247852): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the second row seat cushion.
Refer to: SECOND ROW SEAT CUSHION - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

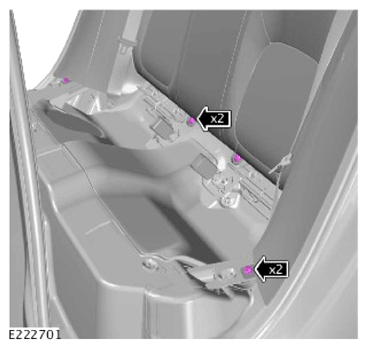

Remove the 4 second row seat backrest frame bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

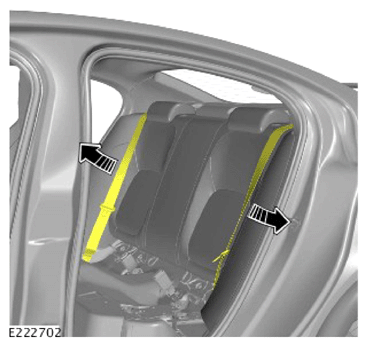

Reposition the second row seatbelts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

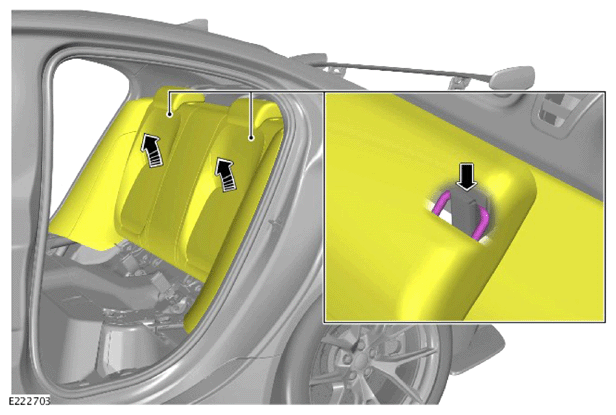

Release the second row seat backrest assembly.
CAUTION: Make sure to protect the vehicle paintwork and trim.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

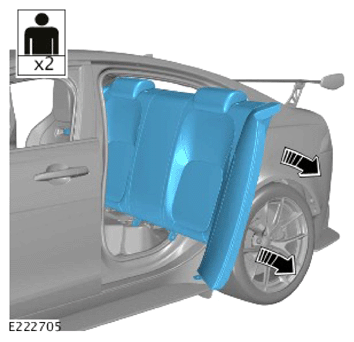

With assistance, remove the second row seat backrest assembly.
