Second Row Seat Armrest (G2203891): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

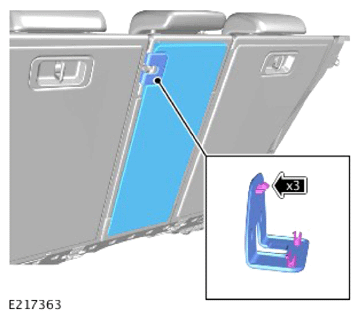

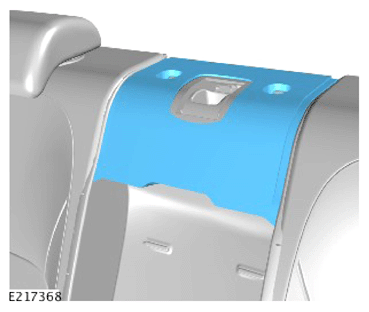

- Remove the latch cover trim.
- Remove the second row seat backrest cover trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

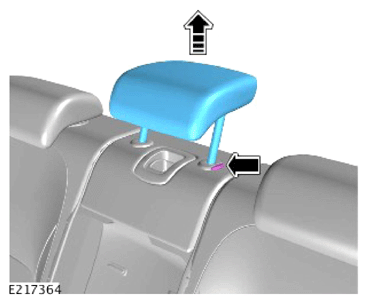

Remove the second row seat head restraint.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

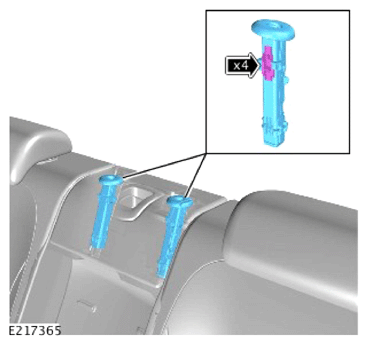

Using a suitable tool remove 2 the second row seat head restraint guide tubes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

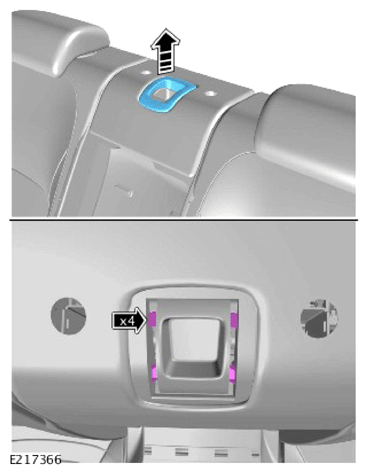

Remove the second row seat backrest release button trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

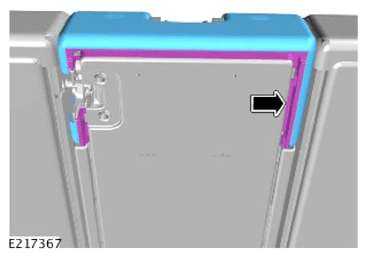

Remove the second row seat armrest upper cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the second row seat armrest upper pad.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

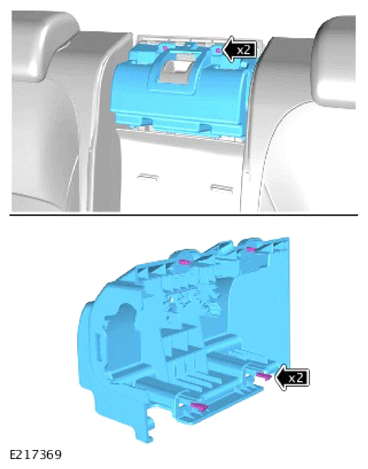

- Remove the 2 bolts.
- Remove the moulding.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

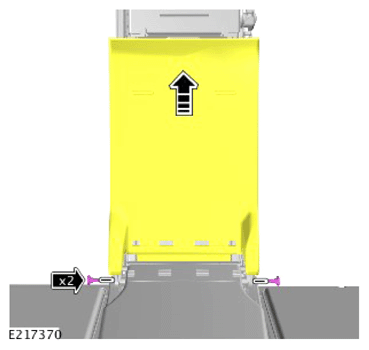

- Release the second row seat armrest trim.
- Remove the 2 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

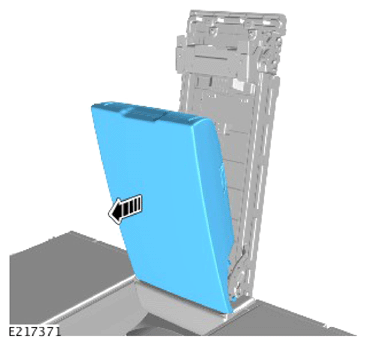

Remove the second row seat armrest.
