Rear Seat Cushion (G1842034): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

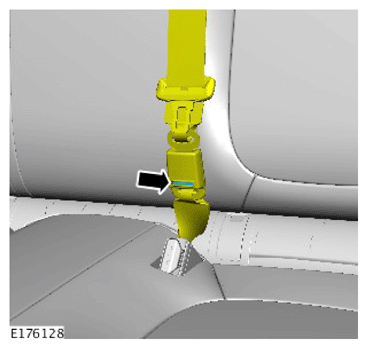

Using a suitable tool, release the centre seat belt buckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

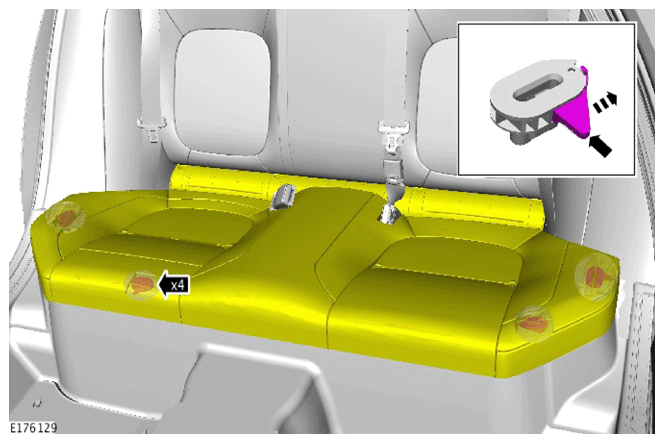

Remove the rear seat cushion retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

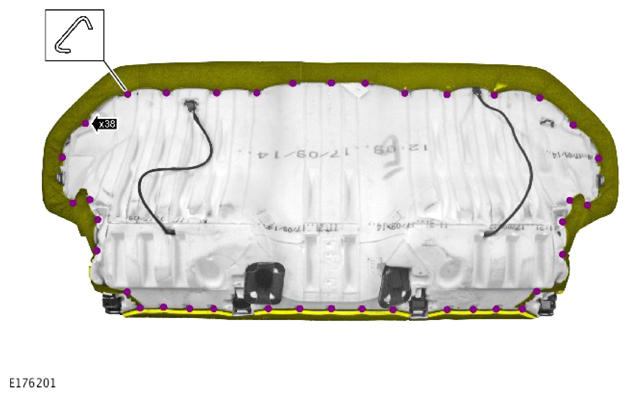

CAUTION: Take care not to damage the seat cushion during this step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
