Rear Seat Cushion (G1842034): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that new hog rings are installed in the sequence shown.

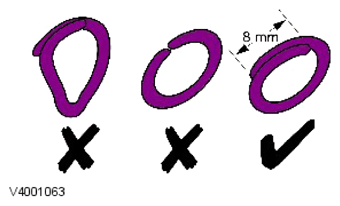

    NOTE: Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
    G14010950Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

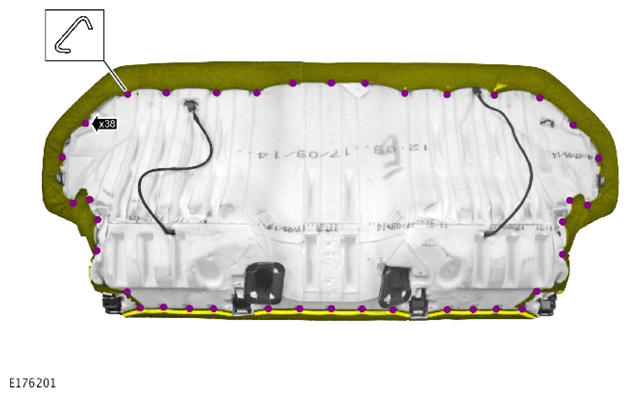

  2. G14010951Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  3. CAUTION: Make sure that new hog rings are installed in the sequence shown.

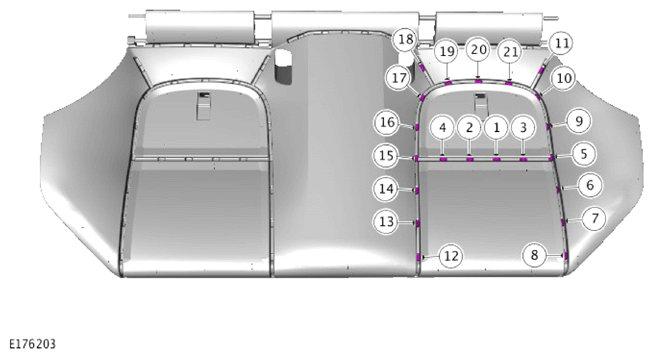

    G14010952Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. CAUTION: Make sure that new hog rings are installed in the sequence shown.

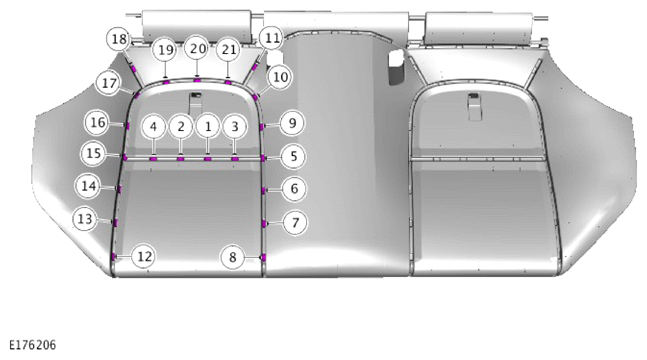

    G14010953Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. CAUTION: Make sure that new hog rings are installed in the sequence shown.

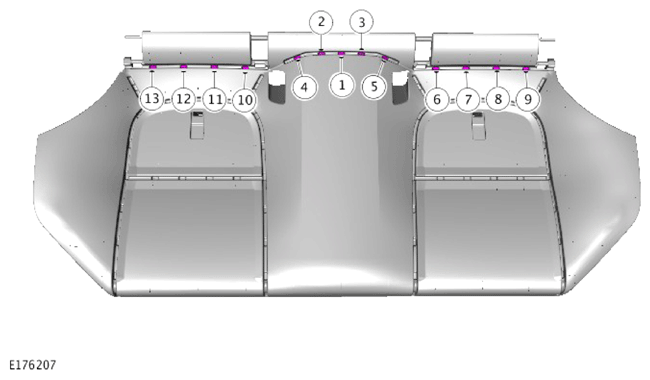

    G14010954Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. To install, reverse the 6. removal procedure.
