Rear Seat Bolster (G1859645): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is always correct.
LH illustration shown, RH is similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

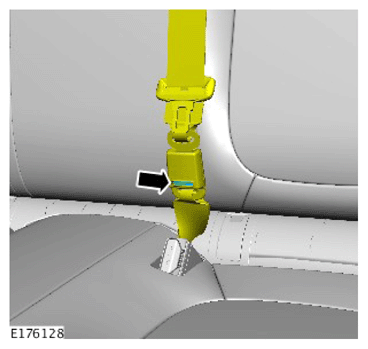

Disconnect the seat belt buckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

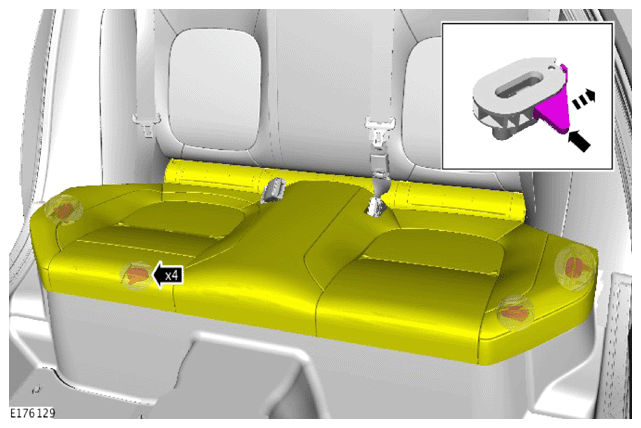

Release the rear seat cushion retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

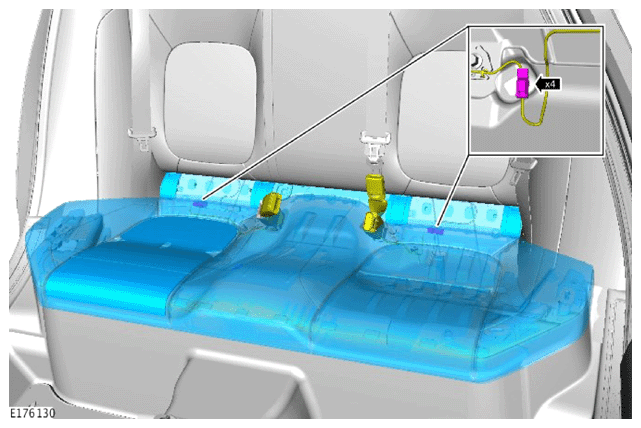

- Disconnect the electrical connectors.
- Remove the seat base.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

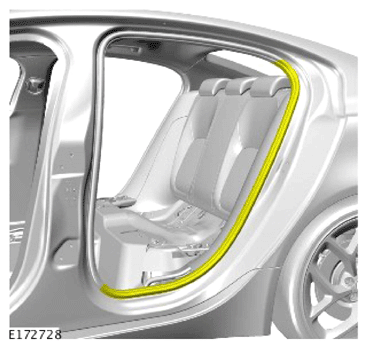

Remove the door aperture seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

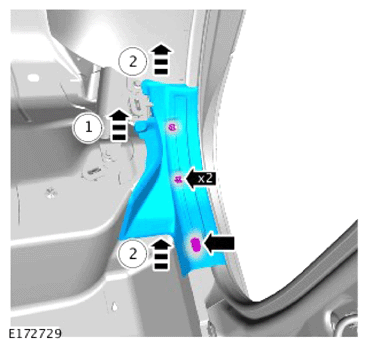

Remove the treadplate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

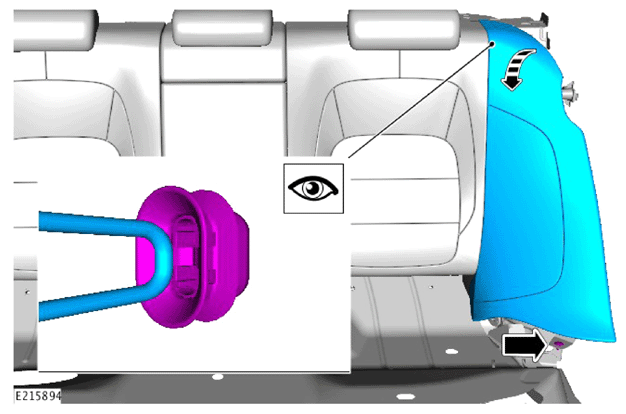

Remove the rear seat bolster.
