Memory Seat Position Switch (G1842037): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • LH illustration shown, RH is similar.

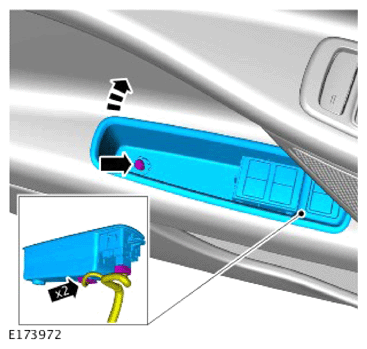

  1. G14010914Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 2.5Nm

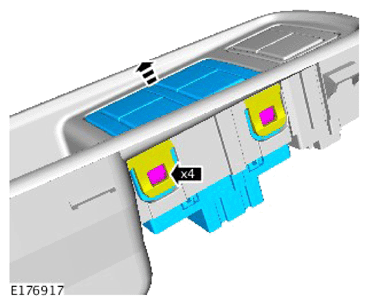

  2. G14010915Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
