Lumbar Assembly - Project 8 (G2260431): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

Make the Supplementary Restraint System (SRS) safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the front seat backrest cover.
Refer to: FRONT ROW SEAT BACKREST COVER TRIM PANEL - PROJECT 8
NOTE: Repeat the step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

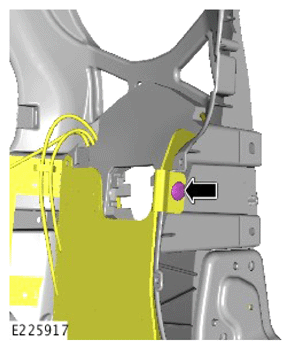

Remove the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

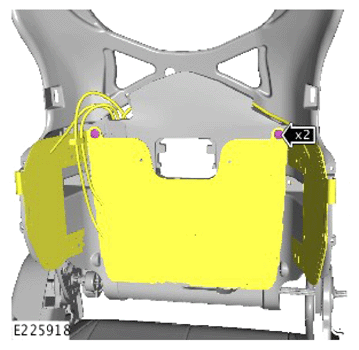

Remove the 2 upper clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

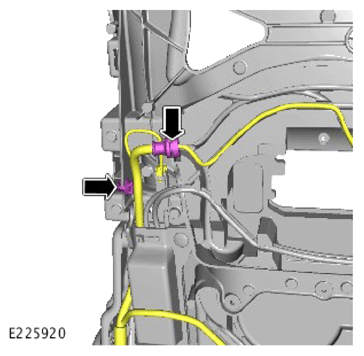

- Remove the clip.
- Remove the grommet.
- Move the wiring harness away from the lumber pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector from the lumber pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

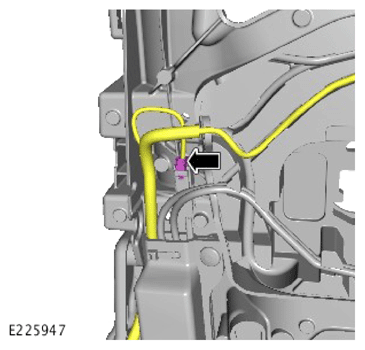

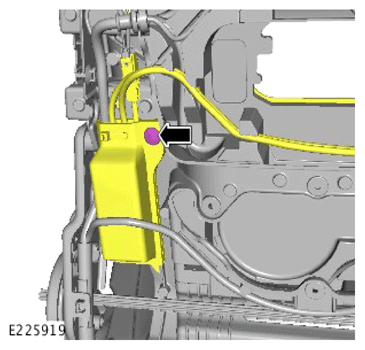

Remove the lumber pump clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

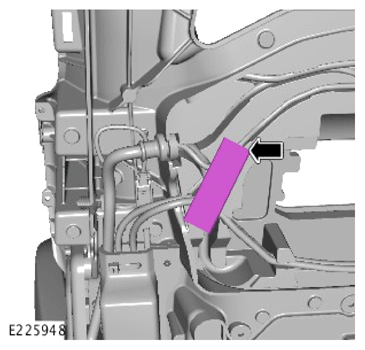

Remove the adhesive tape.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

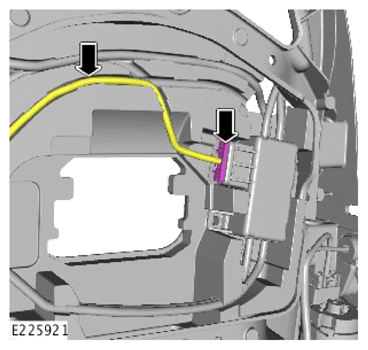

- Disconnect the electrical connector.
- Release the wiring harness from the lumber assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

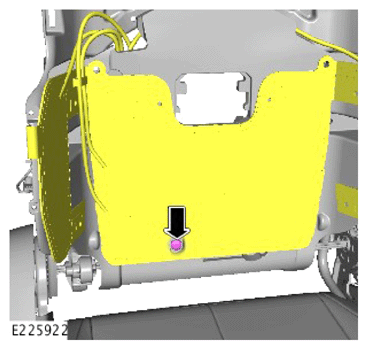

Remove the lower clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

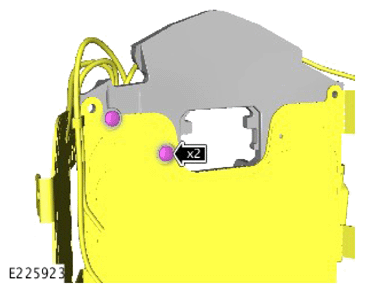

Remove the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

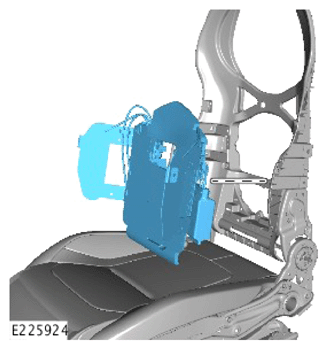

Remove the lumber assembly from the seat.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

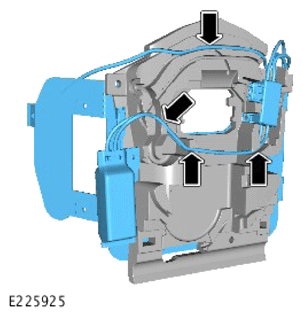

- Release the lumber pipes from the back cover.
- Remove the lumber assembly.
