Front Seat Track Motor - Project 8 (G2263538): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

The following step(s) applies to:

All vehicles

Make the Supplementary Restraint System (SRS) safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
Remove the front row seat backrest cover trim panel.
Refer to: FRONT ROW SEAT BACKREST COVER TRIM PANEL - PROJECT 8
Remove the front row seat cushion cover.
Refer to: FRONT ROW SEAT CUSHION COVER - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

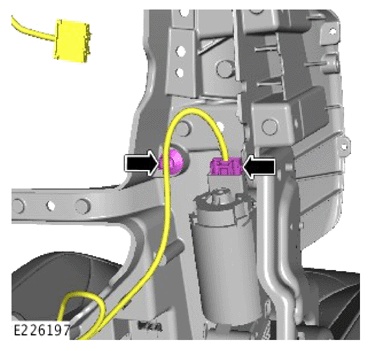

- Remove the clip.
- Remove the grommet.
- Move the wiring harness away from the lumbar motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

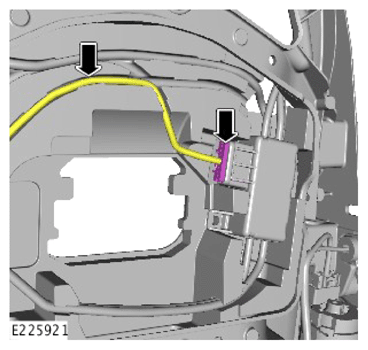

Disconnect the electrical connector from the lumbar motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

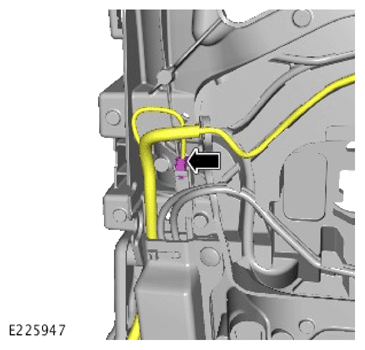

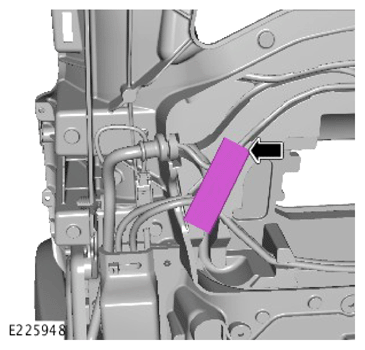

Remove the adhesive tape.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

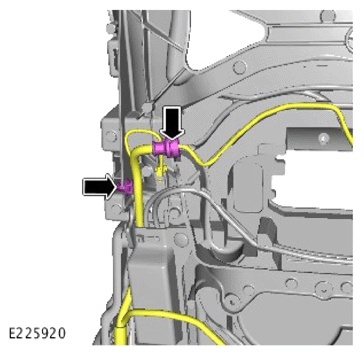

- Disconnect the electrical connector.
- Release the wiring harness from the lumber back cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the clip.
- Remove the grommet.
- Move the wiring harness away from the seat frame.

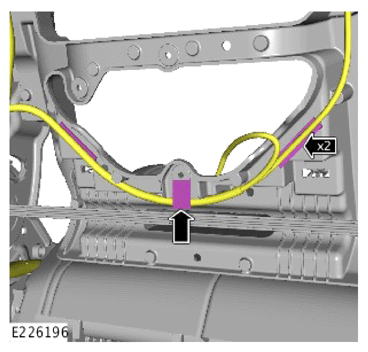

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

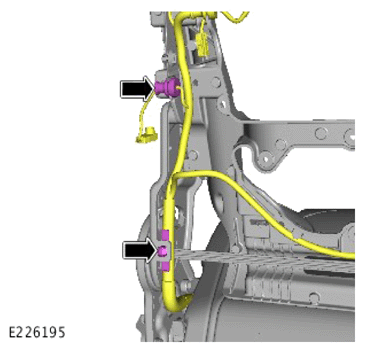

- Remove the 2 clips.
- Remove the adhesive tape.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

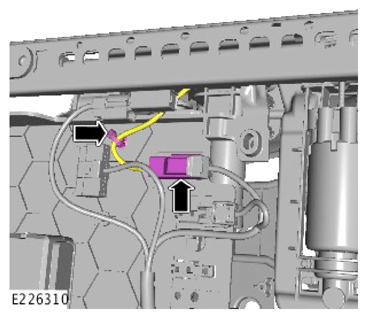

- Disconnect the electrical connector from the seat motor.
- Release the clip.
The following step(s) applies to:

NAS vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

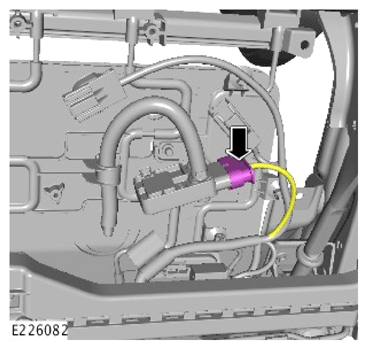

Disconnect the electrical connector from the Occupant Classification Sensor (OCS).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the screw.
- Release the pipe from the seat bracket.
- Move the OCS away from the seat base.
NOTE: Note the orientation of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

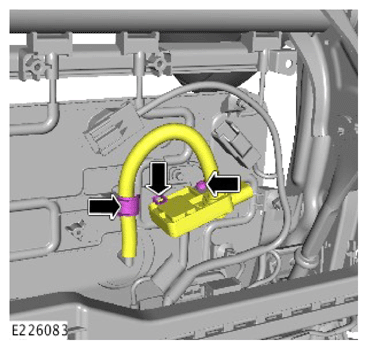

- Remove the 2 clips.
- Remove the OCS.
The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the clip.
- Disconnect the electrical connector.
- Move the seatbelt buckle wiring harness away from the seat base.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

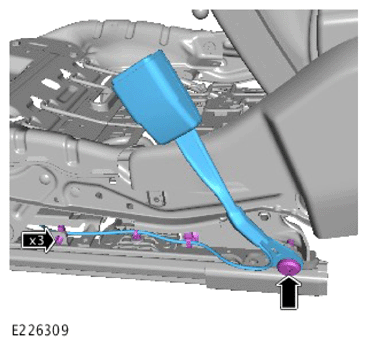

- Remove the 3 clips.
- Remove the bolt and the seatbelt buckle assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

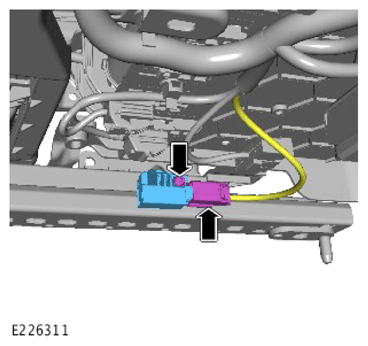

- Disconnect the electrical connector from the seat track position sensor.
- Remove the screw and the seat track position sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

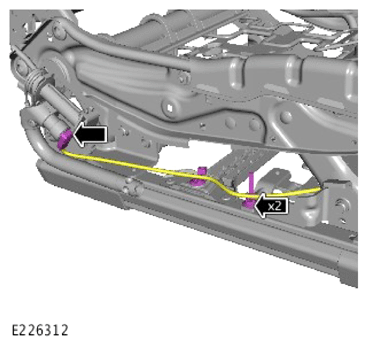

- Disconnect the electrical connector from the seatbelt pretensioner.
- Remove the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

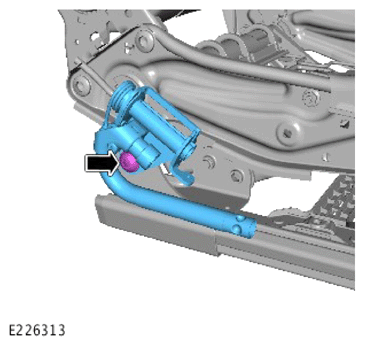

Remove the bolt and the seatbelt pretensioner.

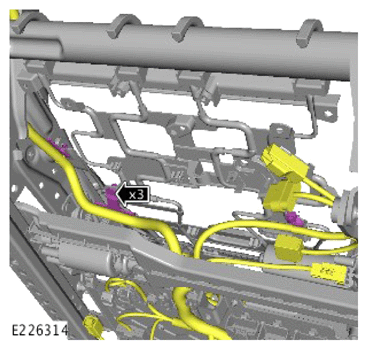

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 clips.
- Move the wiring harness away from the seat base.

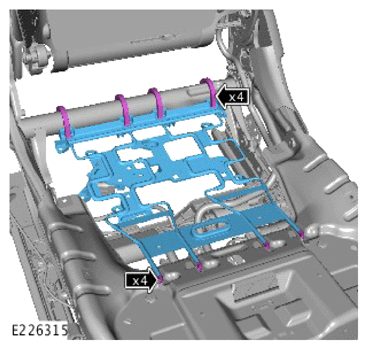

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 rear seat base clips from the seat assembly.
- Remove the 4 front seat base clips and remove the seat base.

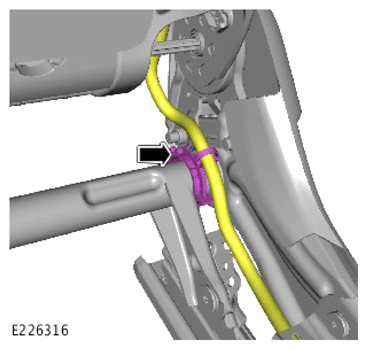

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the clip.

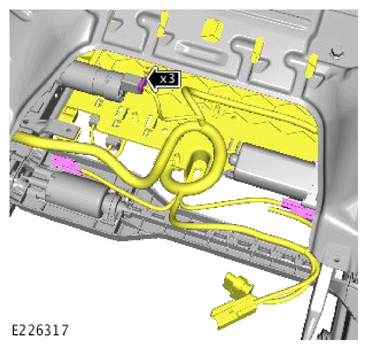

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 3 electrical connectors from the seat motor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

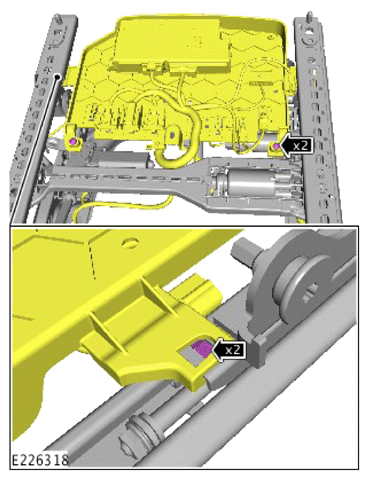

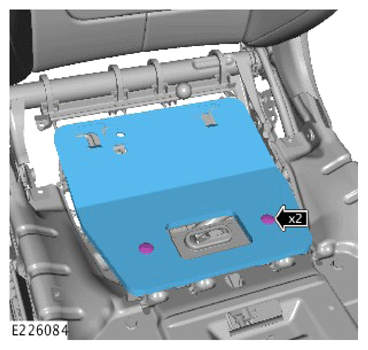

- Remove the 2 screws from the seat base tray.
- Remove the 2 clips.
- Move the seat base tray away from the seat base.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

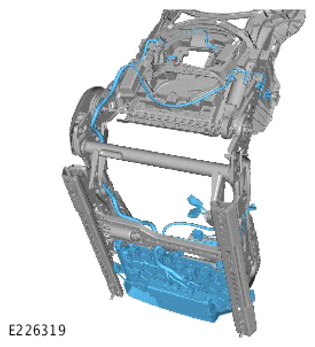

Remove the front row seat wiring harness and tray assembly.

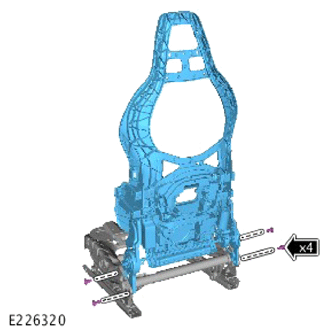

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the seat back from the front seat track motor assembly.
