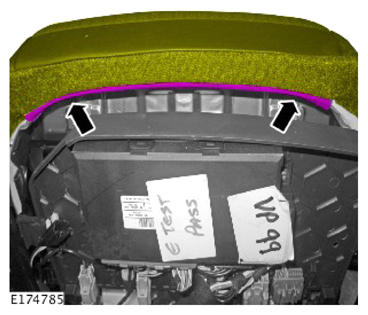

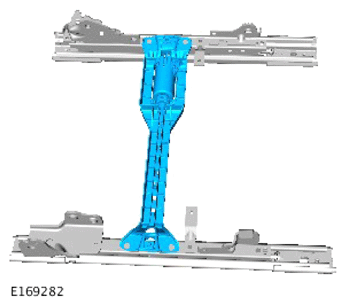

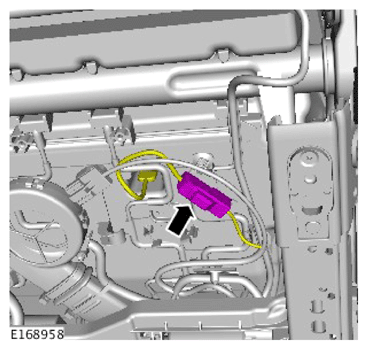

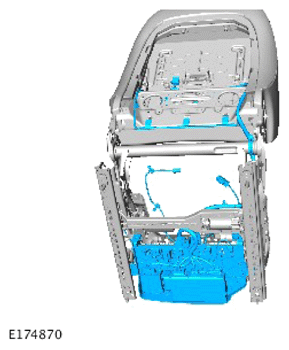

Front Seat Track Motor (G1842030): Removal

The following step(s) applies to:

All vehicles

1. Raise the front seat to the 1. highest position.
2. Refer to: FRONT ROW SEAT

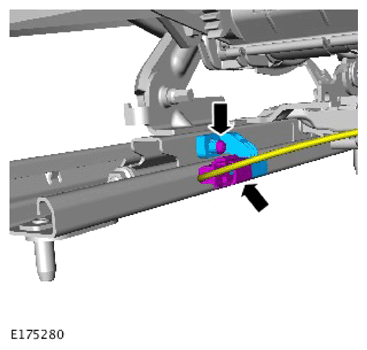

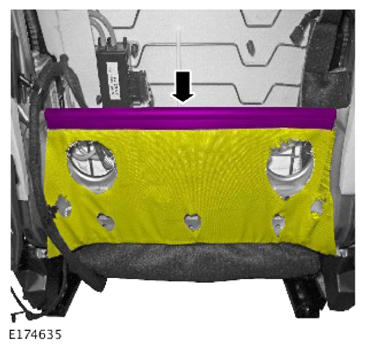

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   The following step(s) applies to:

   Long wheelbase

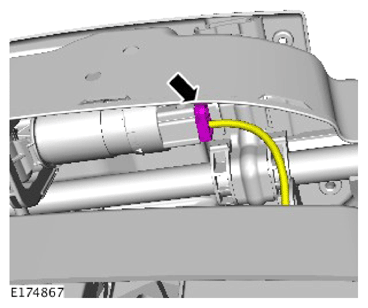

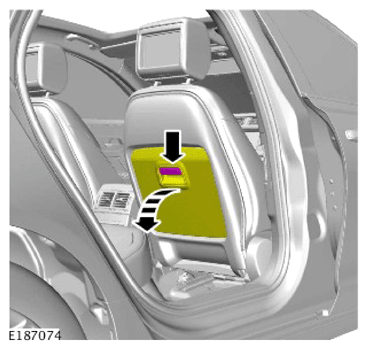

4. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

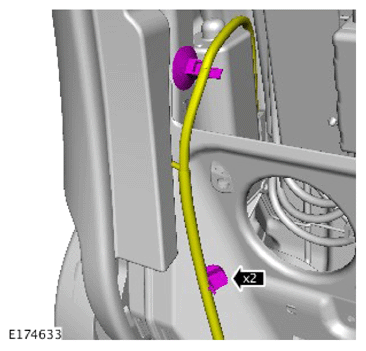

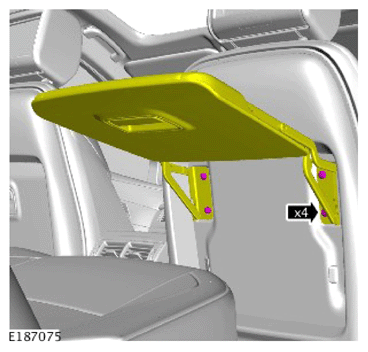

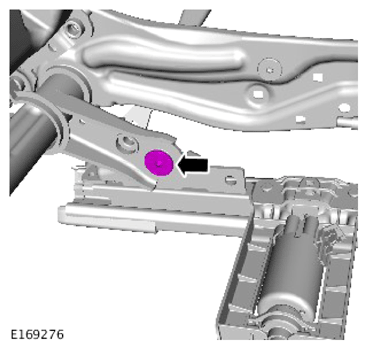

5. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Torque  : 8Nm

6. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   The following step(s) applies to:

   All vehicles

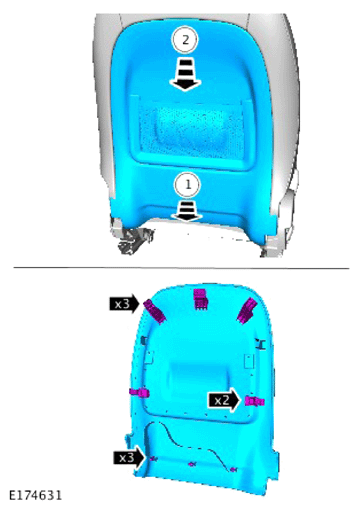

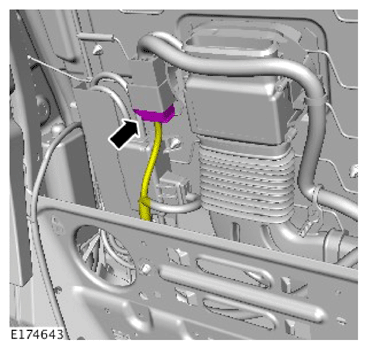

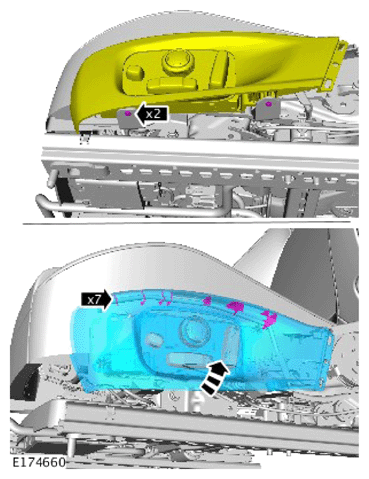

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

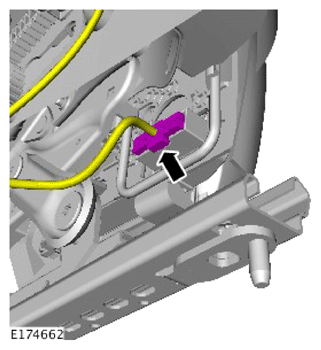

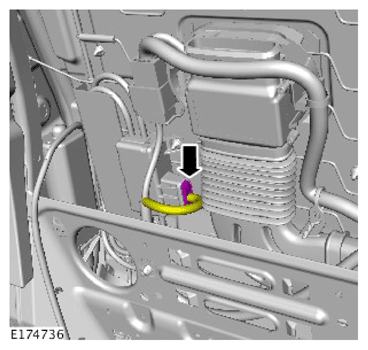

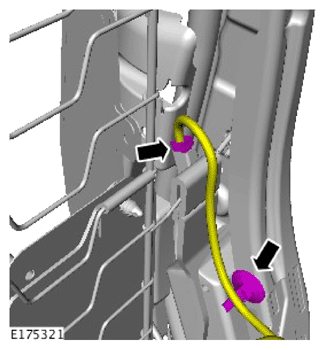

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

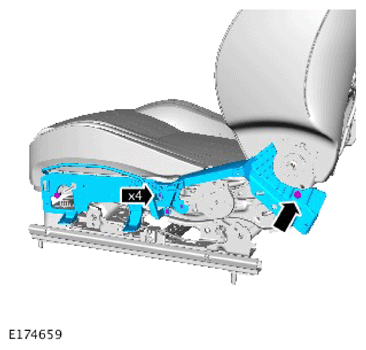

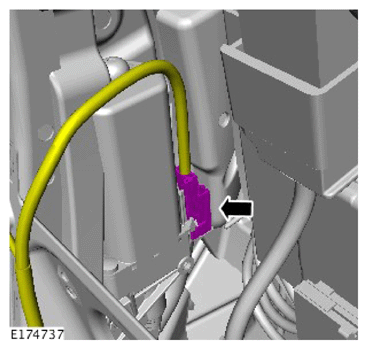

9. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

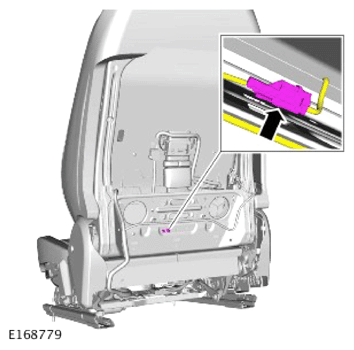

10. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

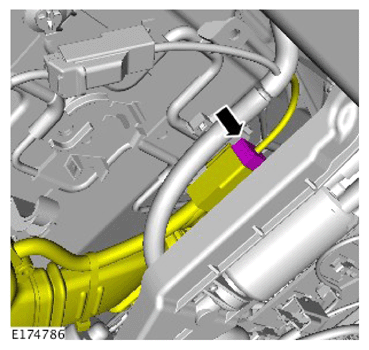

11. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

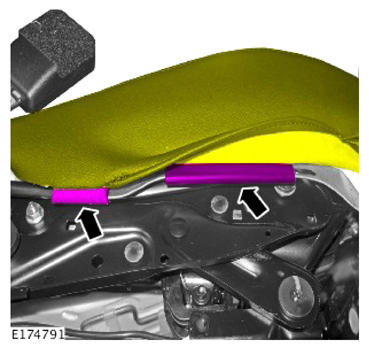

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

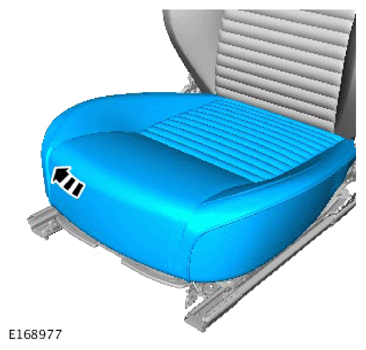

13. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

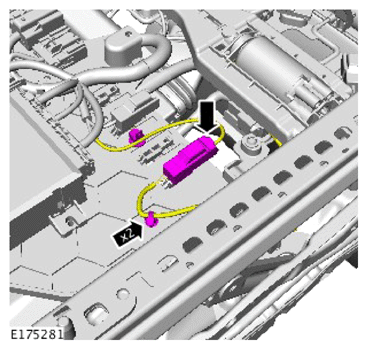

14. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

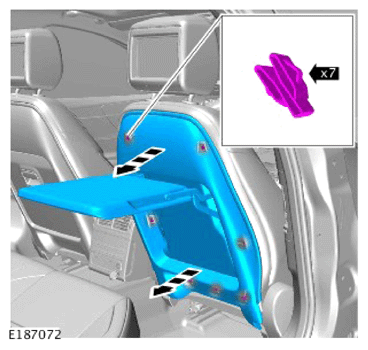

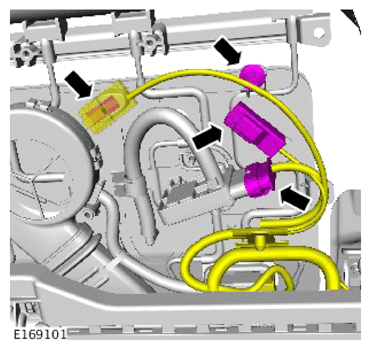

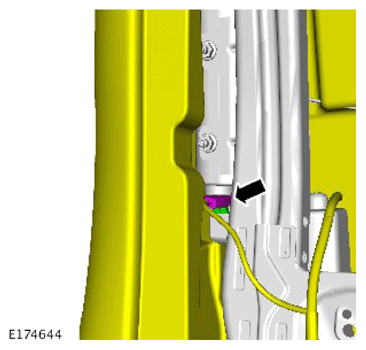

15. WARNING:

    • Do not probe supplemental restraint system (SRS) electrical connectors.
    • The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
    NOTE: Left illustration shown, right is similar.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

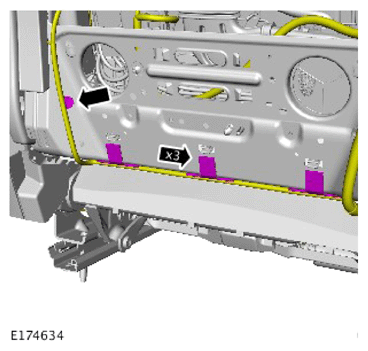

16. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

17. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

18. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

19. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

20. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Vehicles with heated seats.

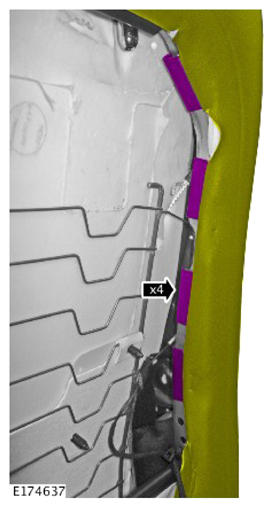

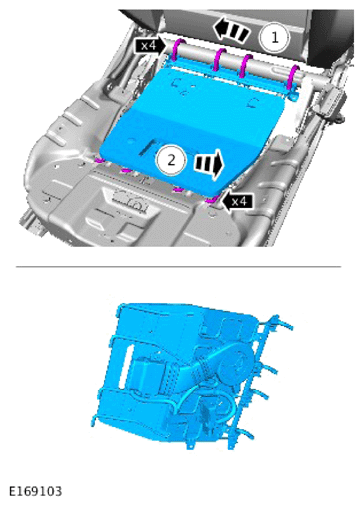

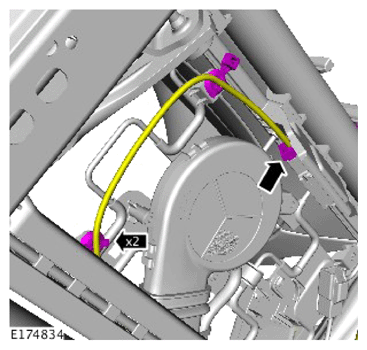

21. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

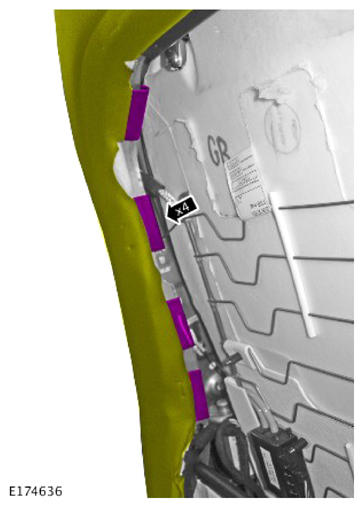

22. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

23. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

24. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

25. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

26. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

27. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

28. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

29. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

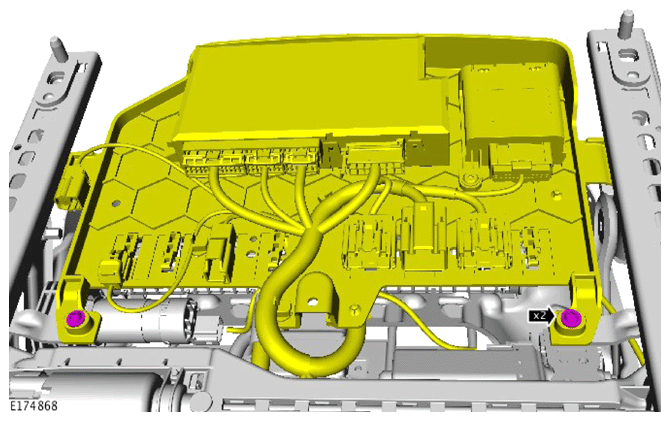

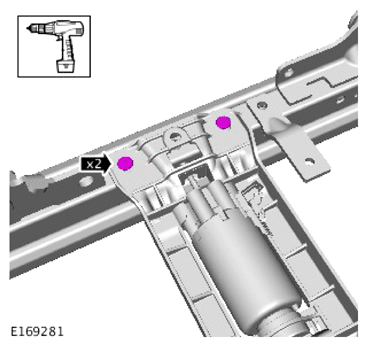

    NAS vehicles.

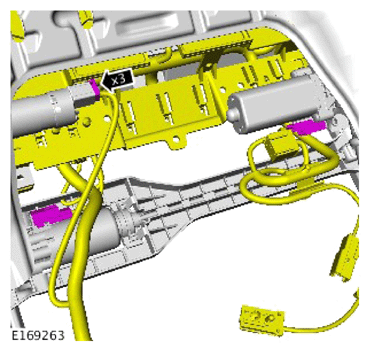

30. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

31. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

32. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

33. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 5Nm

34. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

35. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

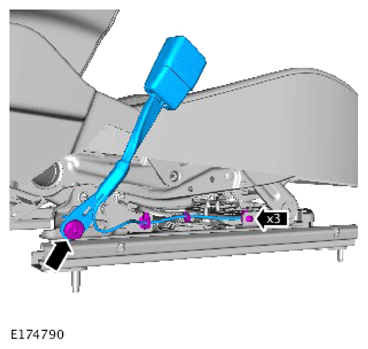

36. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 40Nm

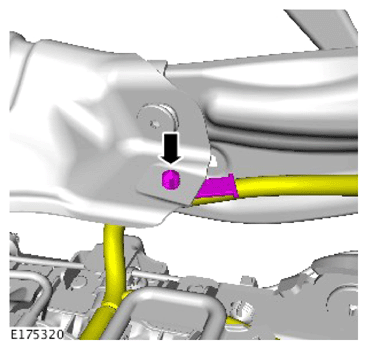

37. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 6Nm

38. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

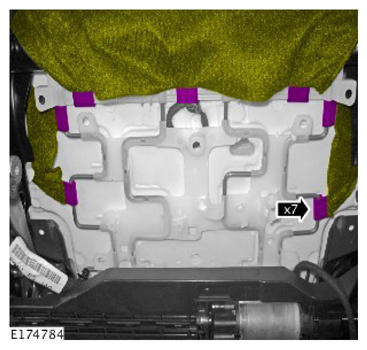

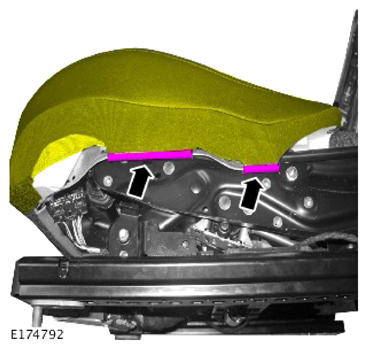

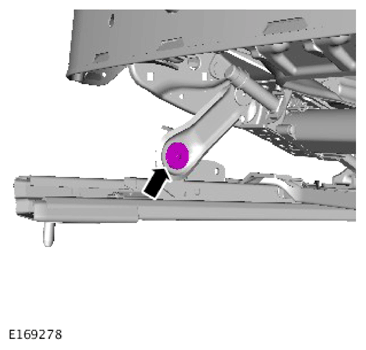

39. NOTE: The front seat cushion shown removed for clarity.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 28Nm

40. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 28Nm

41. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 28Nm

42. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 28Nm

43. CAUTION:

    • Make sure that only the head of the fixing is removed. Do not drill any deeper than necessary. Failure to follow this instruction may result in damage to the component.
    • Make sure that the area around the component is clean and free of foreign material.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

44. CAUTION:

    • Make sure that only the head of the fixing is removed. Do not drill any deeper than necessary. Failure to follow this instruction may result in damage to the component.
    • Make sure that the area around the component is clean and free of foreign material.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

45. NOTE: Note the orientation of the component prior to removal.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

46. NOTE: Repeat the procedure for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

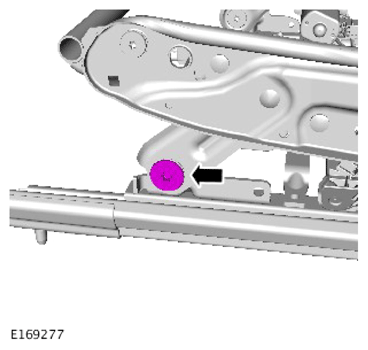

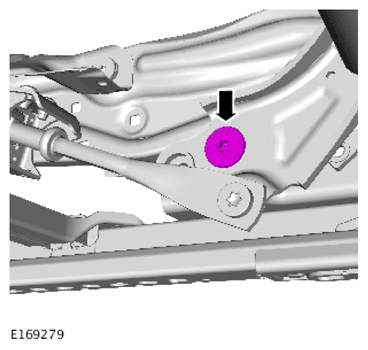

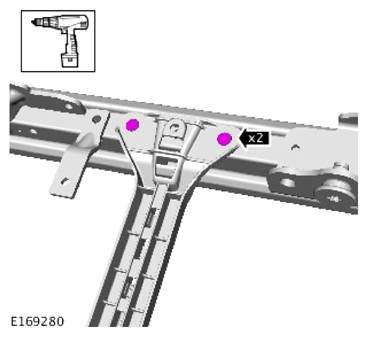

• Using a suitable tool, remove the old rivets from the seat runners.
