Front Seat Tilt Assembly (G1842041): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.

Raise the front seat to the 1. highest position.
Refer to: FRONT ROW SEAT

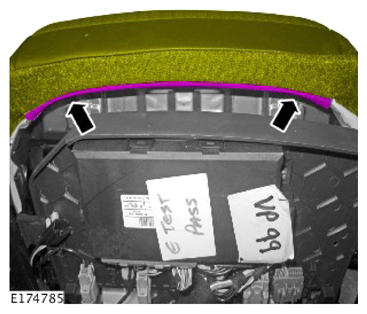

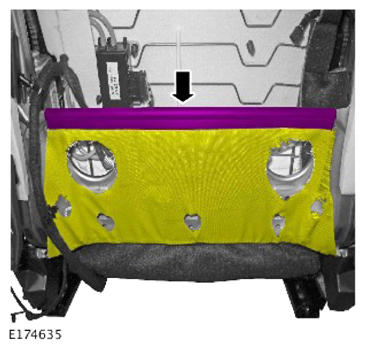

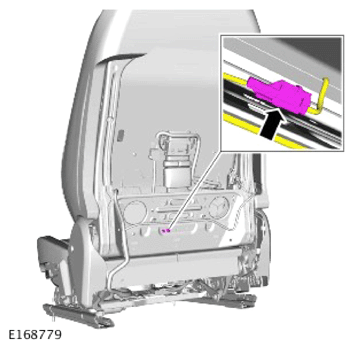

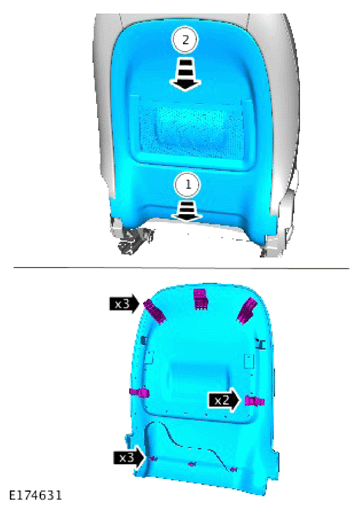

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

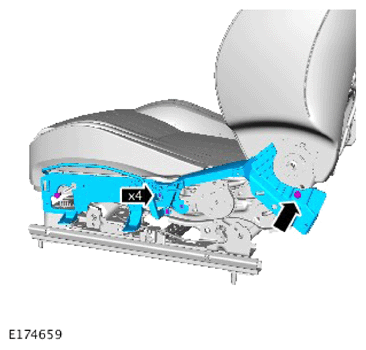

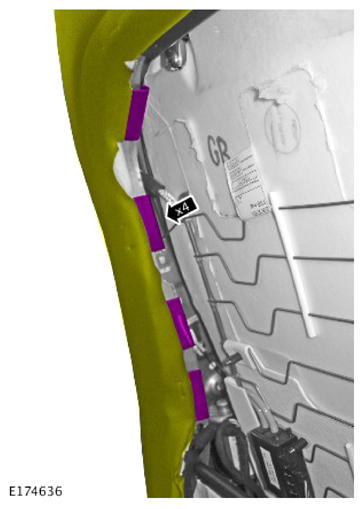

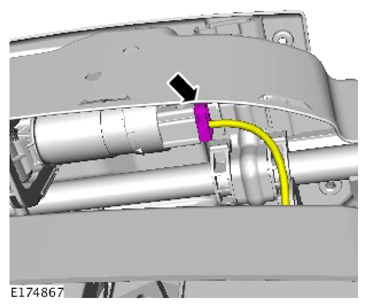

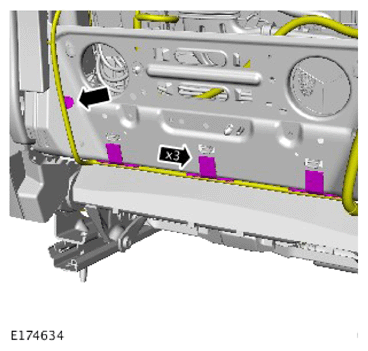

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

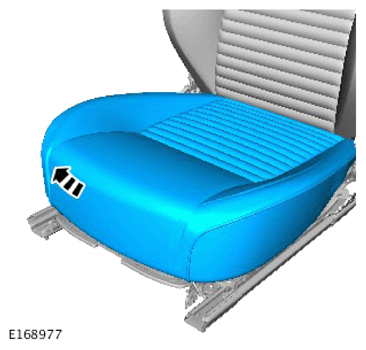

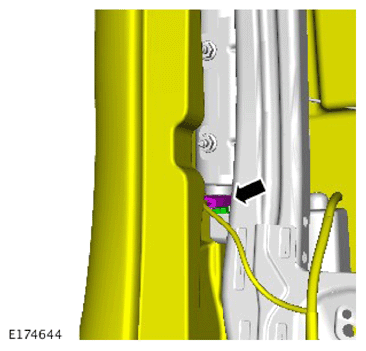

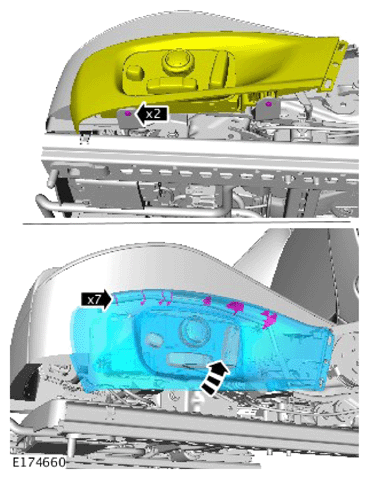

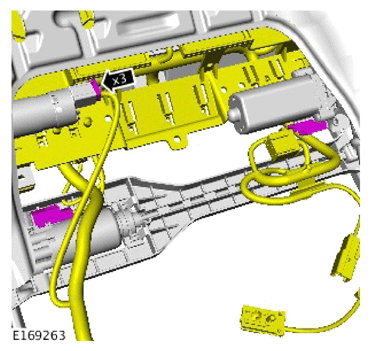

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

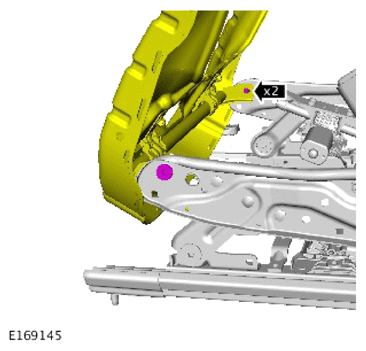

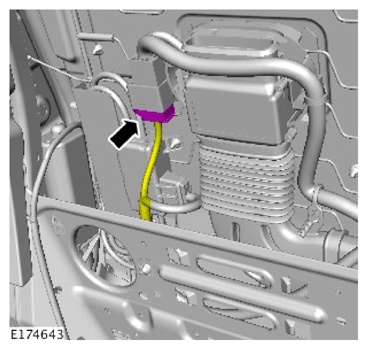

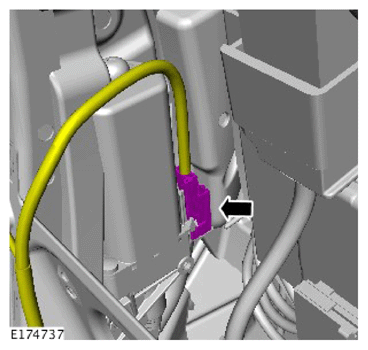

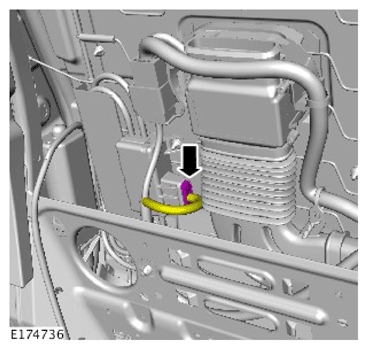

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

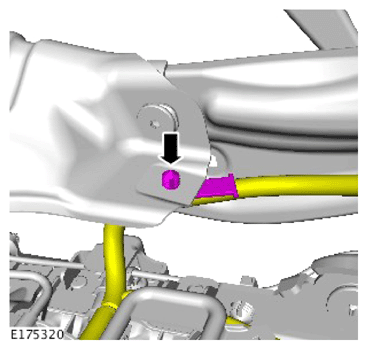

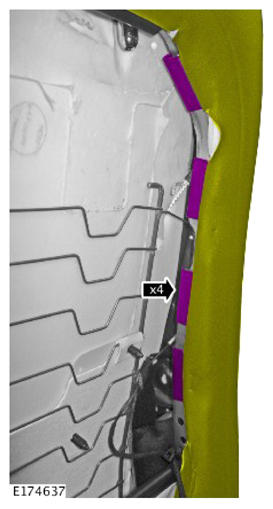

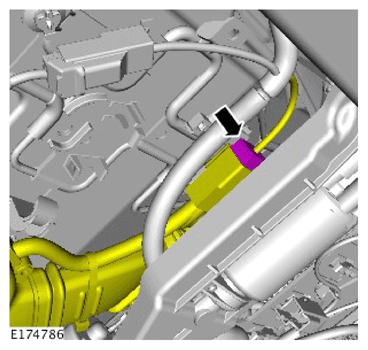

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

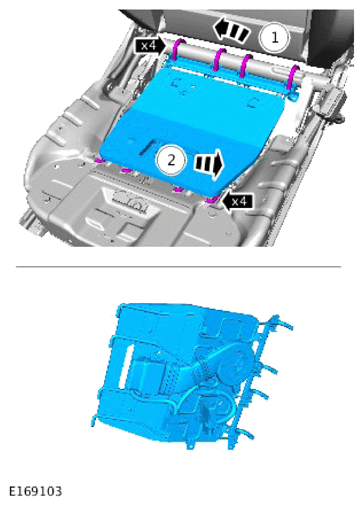

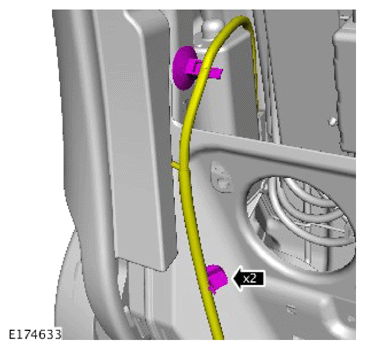

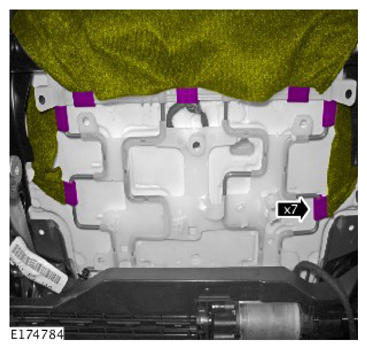

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

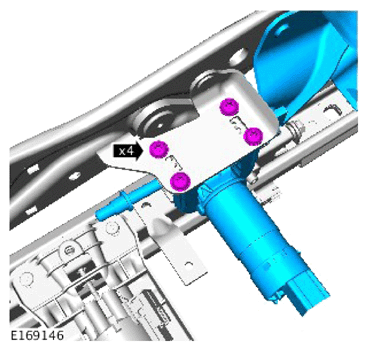

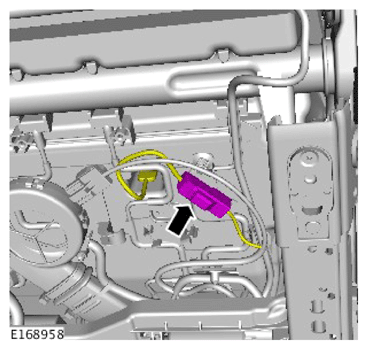

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

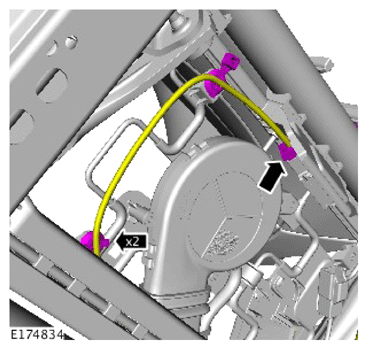

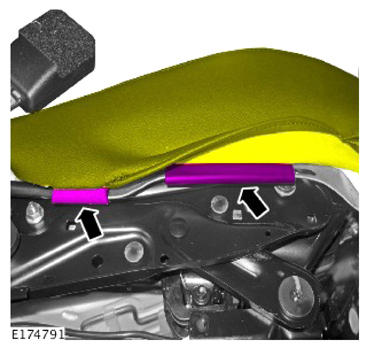

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

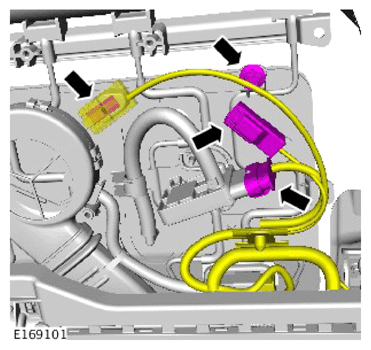

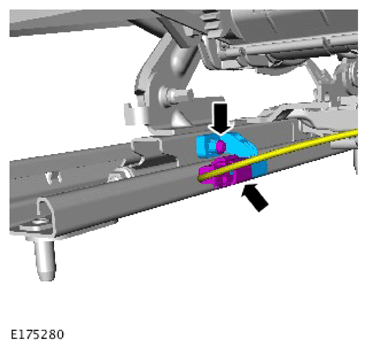

WARNING:
- Do not probe supplemental restraint system (SRS) electrical connectors.
- The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
NOTE: LH illustration shown, RH is similar.

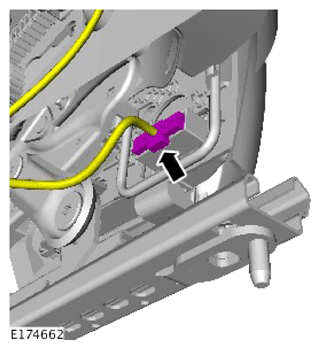

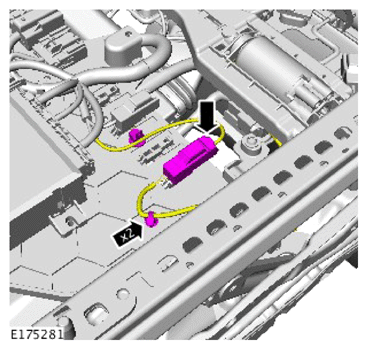

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

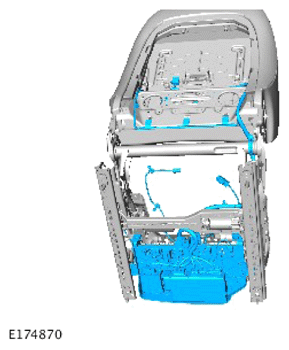

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

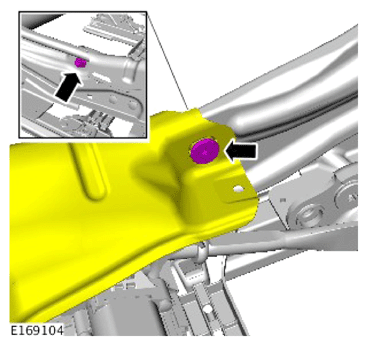

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

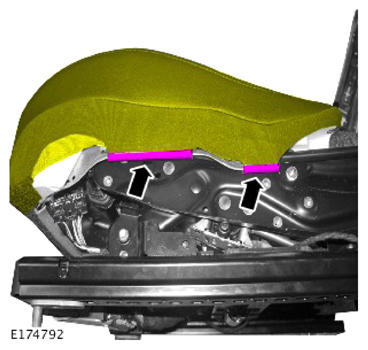

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

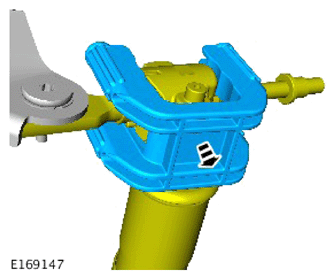

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

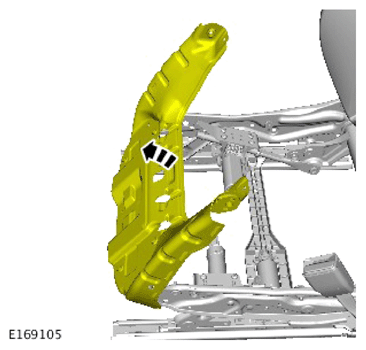

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

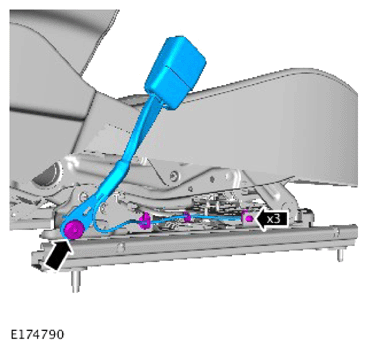

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

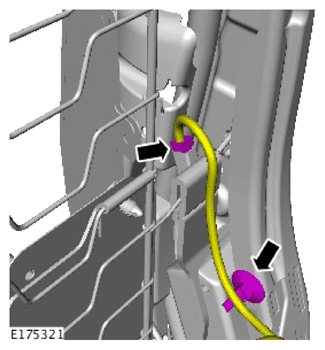

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

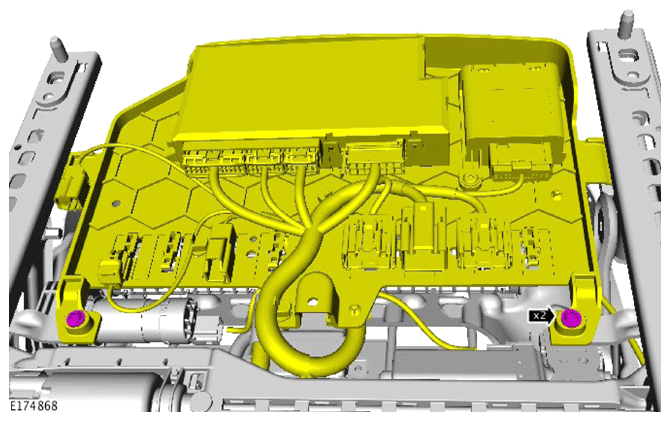

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 5Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 40Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 6Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Repeat the procedure for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 8Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 26Nm

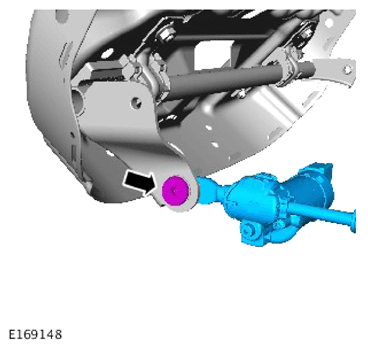

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10Nm
NOTE: Note the orientation of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 30Nm
