Front Seat Recliner Motor - Project 8 (G2263761): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Make the Supplementary Restraint System (SRS) safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
Remove the lumbar assembly.
Refer to: LUMBAR ASSEMBLY - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

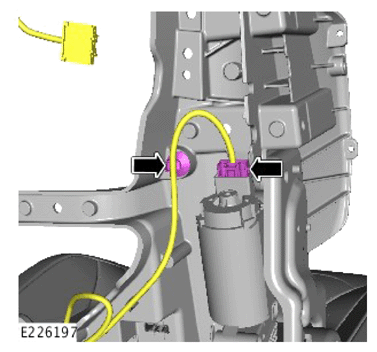

- Remove the clip.
- Remove the grommet.
- Move the wiring harness away from the seat frame.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

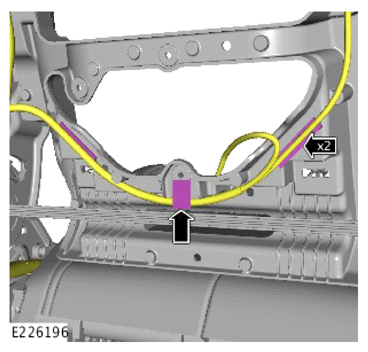

- Remove the 2 clips.
- Remove the adhesive tape.
- Move the wiring harness away from the seat frame.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

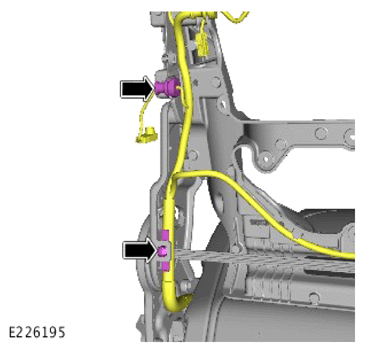

- Disconnect the electrical connector from the recliner motor.
- Remove the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

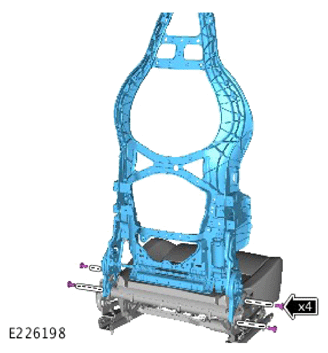

- Remove the 4 bolts.
- Remove the front seat recliner motor.
