Front Seat Height Adjustment Motor (G1842032): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Removal steps in this procedure may contain installation details.
- All vehicles
Refer to: FRONT ROW SEAT

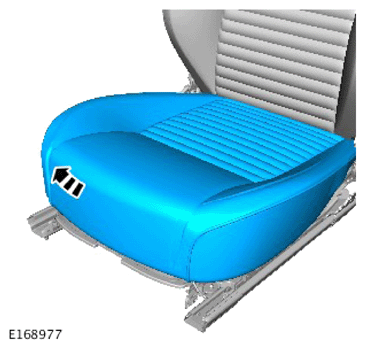

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

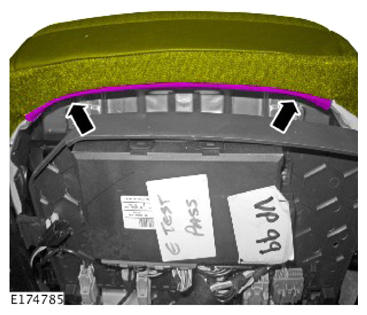

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

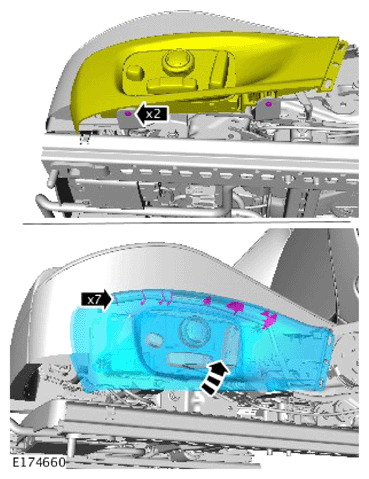

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

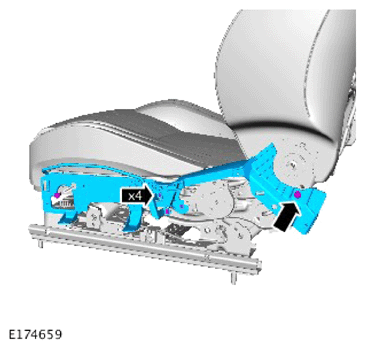

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

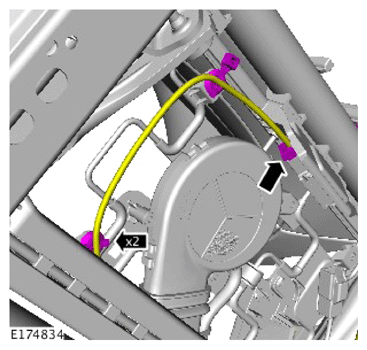

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

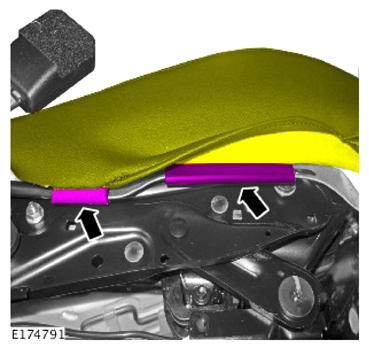

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

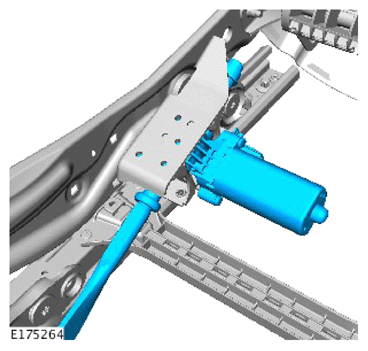

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

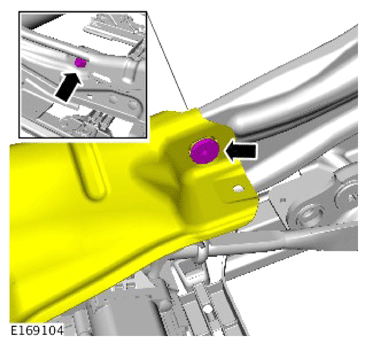

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
NAS vehicles
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
All vehicles
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 6Nm
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 6Nm
-
NOTE:
Repeat the procedure for the other side.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 8Nm
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
-
CAUTION:
Left hand thread.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 28Nm
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
Torque
: 10Nm
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
