Front Row Seat Track (G1842029): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: To avoid accidental deployment, the restraints control module backup power supply must be depleted. Wait at least two minutes after disconnecting the battery ground cable(s) before commencing any repair or adjustment to the supplemental restraint system (SRS), or any component(s) adjacent to the SRS sensors. Failure to follow these instructions may result in personal injury.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Remove the front row seat.
Refer to: FRONT ROW SEAT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

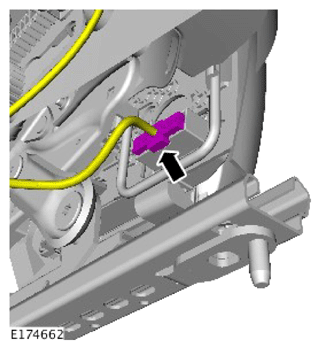

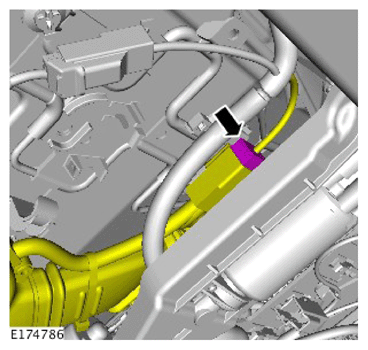

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the switch pack.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

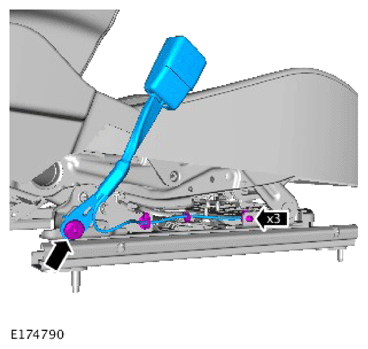

Remove the seat belt buckle.

Torque : 40Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

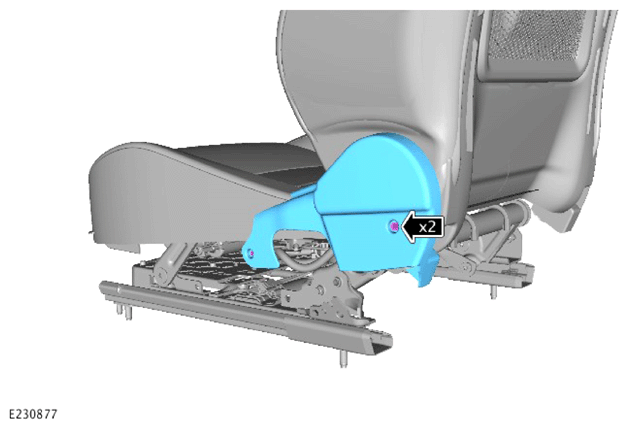

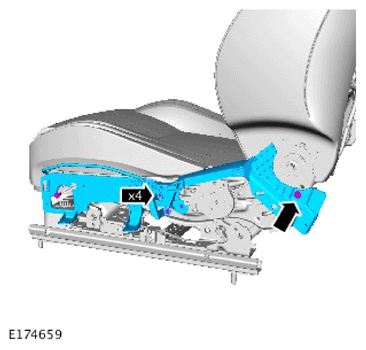

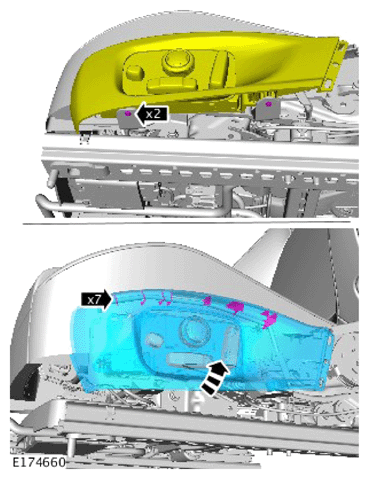

- Remove the 2 retaining screws.
- Remove the side trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

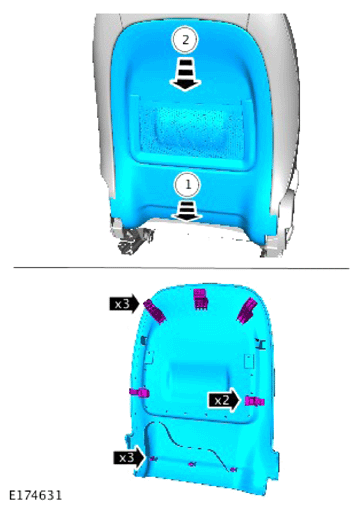

Remove the seat back cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

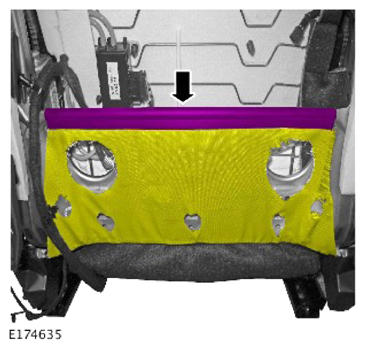

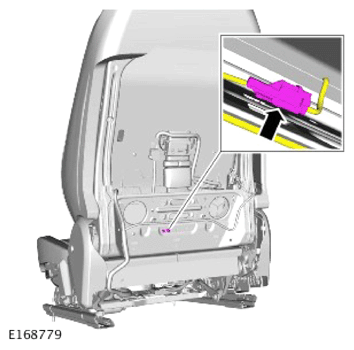

Release the seat cover retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

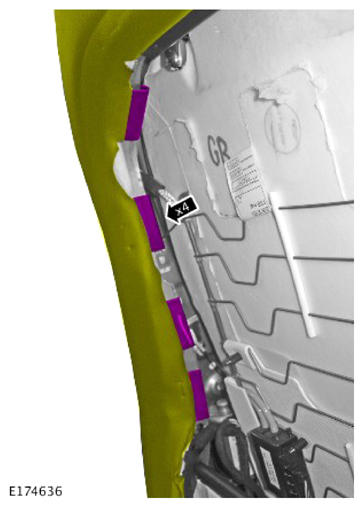

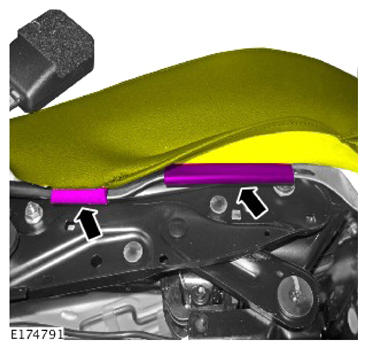

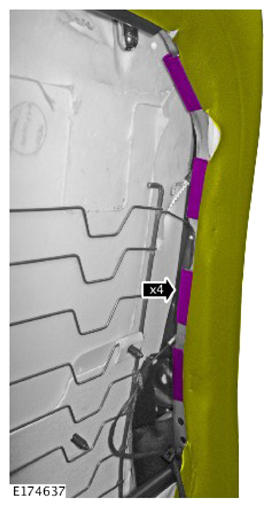

Release the 4 seat cover retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

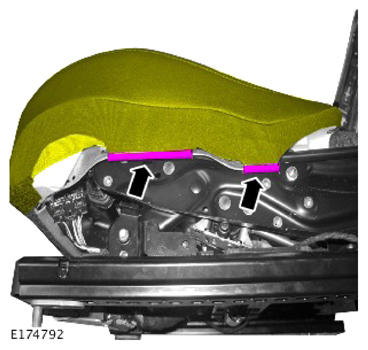

Release the 4 seat cover retaining clips.
WARNING:
- Do not probe supplemental restraint system (SRS) electrical connectors.
- The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

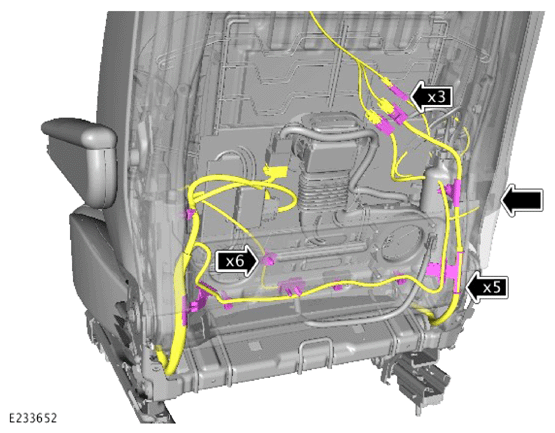

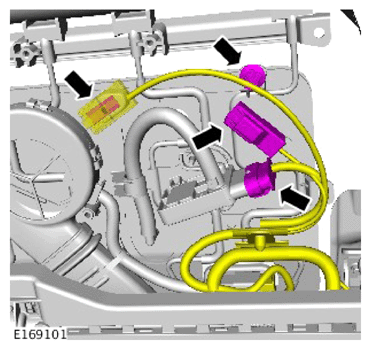

- Release the electrical harness retaining clips.
- Disconnect the electrical connectors.
- Disconnect the side airbag.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

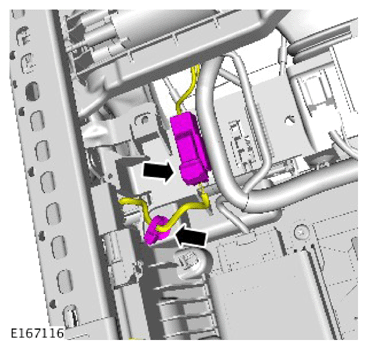

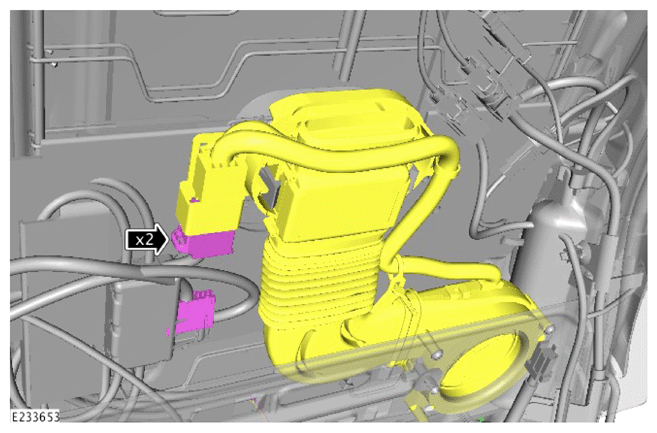

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

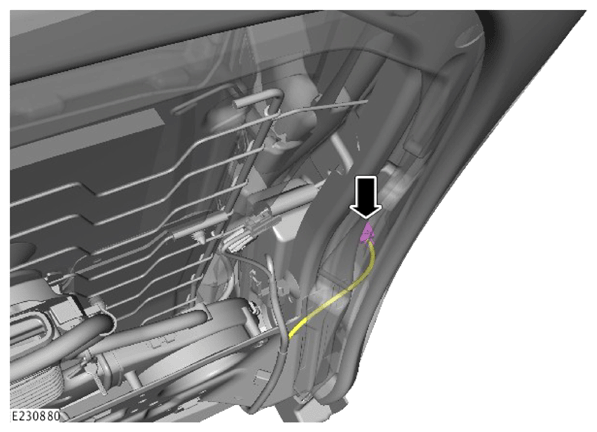

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

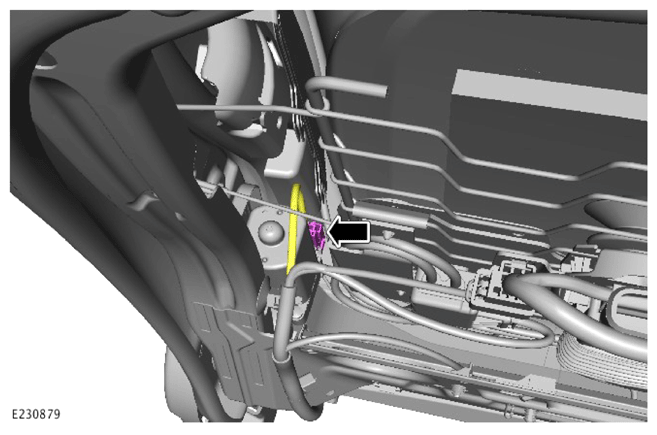

Disconnect the electrical connector.
WARNING:
- Do not probe supplemental restraint system (SRS) electrical connectors.
- The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

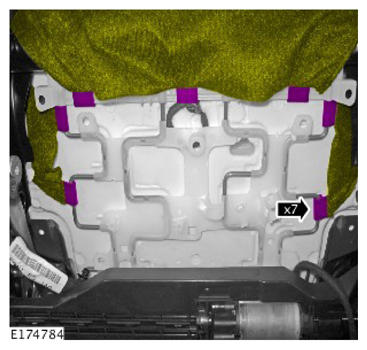

Release the 7 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

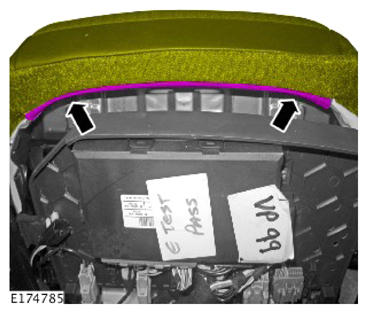

Release the 2 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 2 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the retaining clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

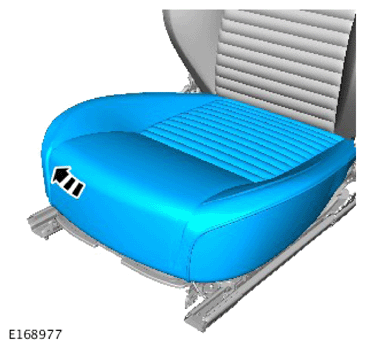

Remove the seat base.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

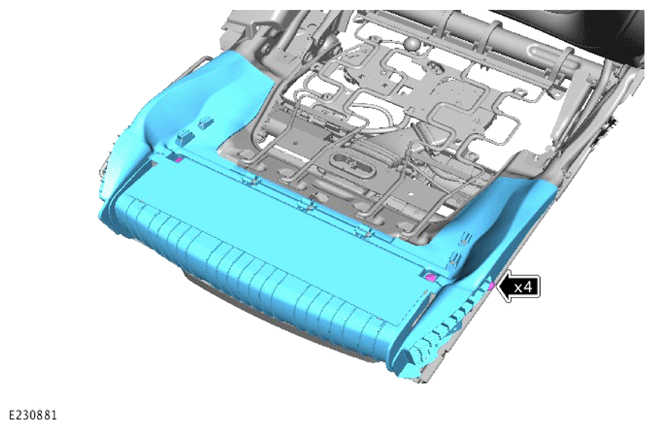

- Remove the 4 retaining bolts.
- Remove the extension plastics.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 3 electrical connectors.
NOTE: NAS vehicles only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the 2 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

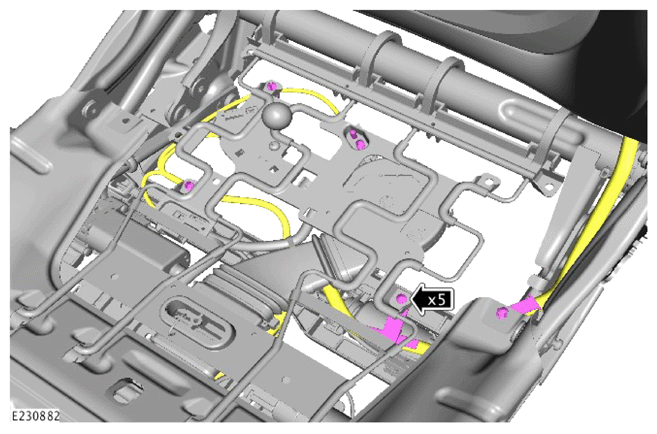

Release the harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

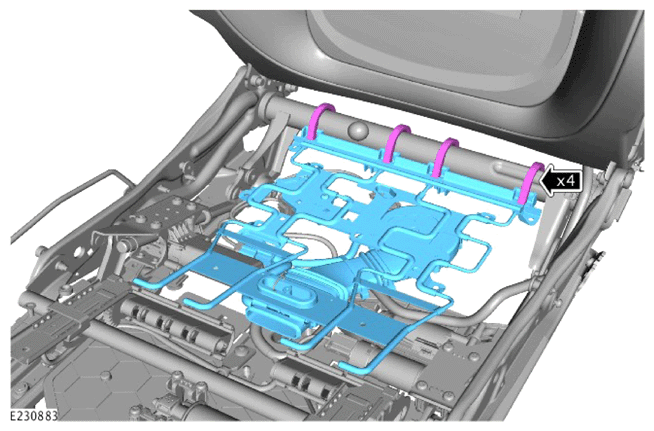

Remove the seat base panel.
NOTE: NAS vehicle only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

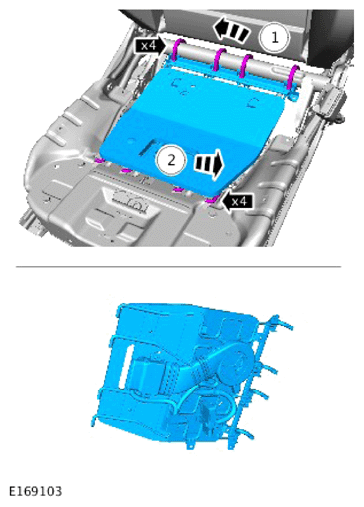

Remove the seat base panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

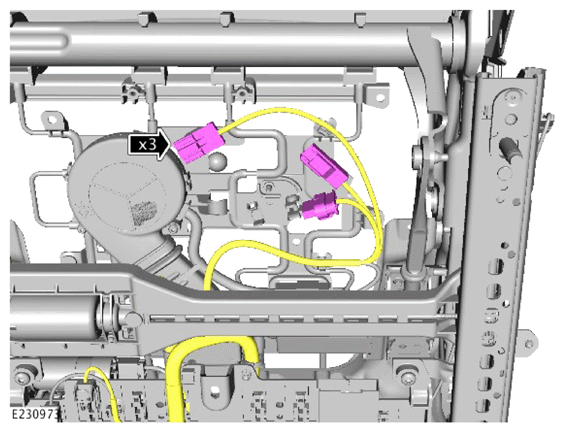

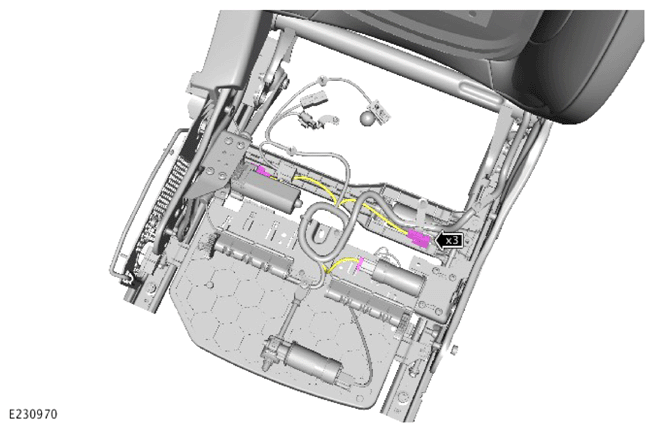

Disconnect the 3 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

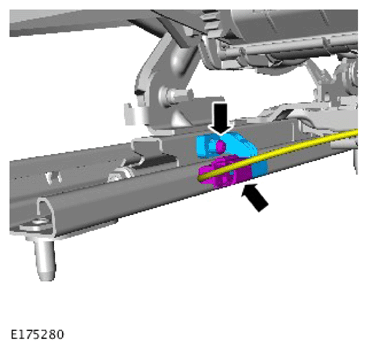

- Disconnect the electrical connector.
- Remove the seat base sensor.
Torque : 1Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

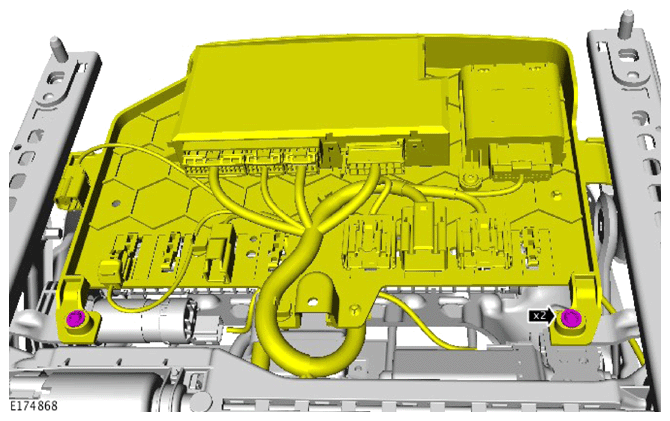

Remove the 2 retaining screws.

Torque : 7Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

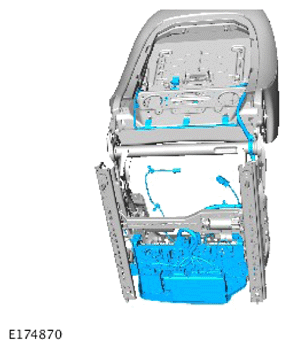

Remove the panel and wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

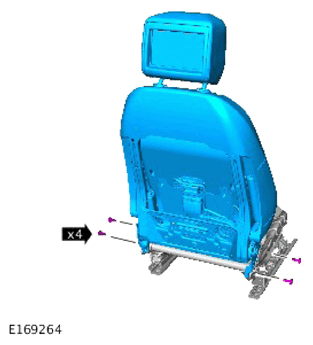

Remove the 4 retaining bolts.

Torque : 50Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

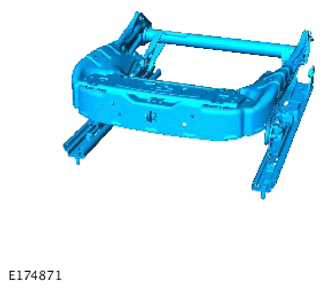

Remove the front row seat track.
