Front Row Seat SWITCHPACK (G1842021): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  • Raise the front seat to the highest position.

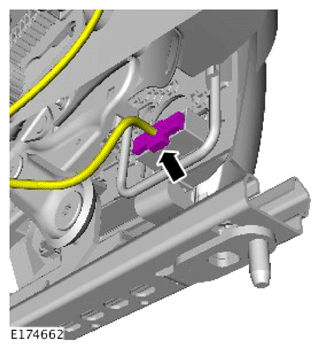

  1. G14010589Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

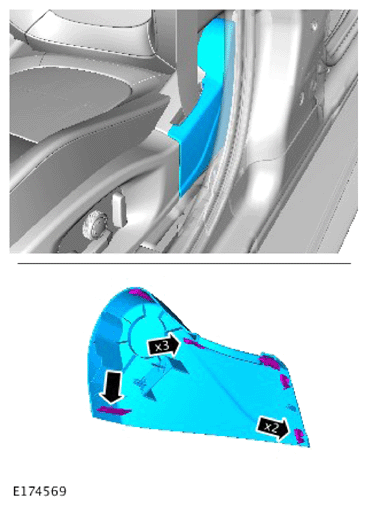

  2. G14010590Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

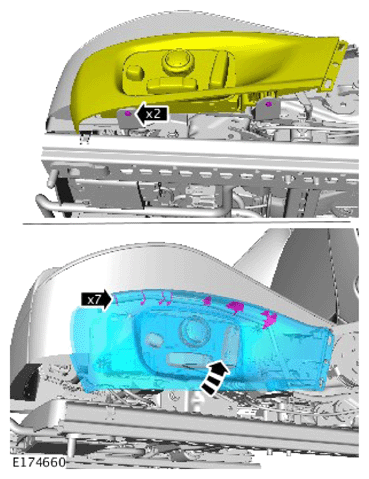

  3. G14010591Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

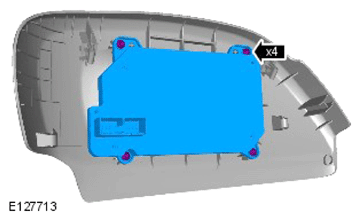

  4. G14010592Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
