Front Row Seat Driver Cushion (G1842038): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

The following step(s) applies to:

All vehicles

NOTE:
- Make sure that new hog rings are installed.

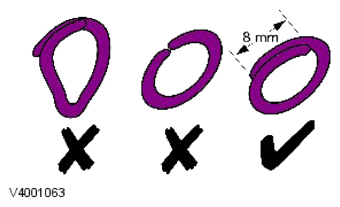

- Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Hog rings Quantity: 23 .

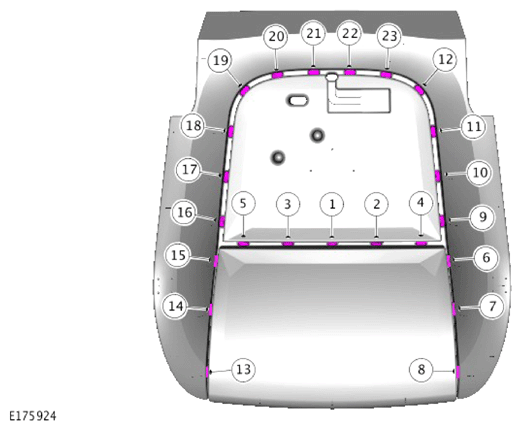

The following step(s) applies to:

Vehicles without climate controlled seats
CAUTION: Make sure that new hog rings are installed in the sequence shown.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

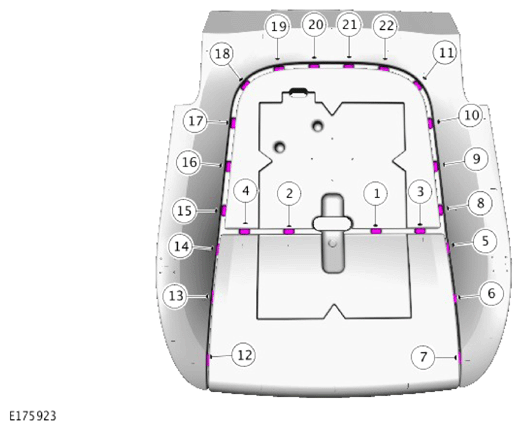

The following step(s) applies to:

Vehicles with climate controlled seats
CAUTION: Make sure that new hog rings are installed in the sequence shown.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
To install, reverse the 4. removal procedure.
