Front Row Seat Cushion Cover - Project 8 (G2260427): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the front row seat.
Refer to: FRONT ROW SEAT - PROJECT 8
Remove the front row seat control switchpack.
Refer to: FRONT ROW SEAT SWITCHPACK - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

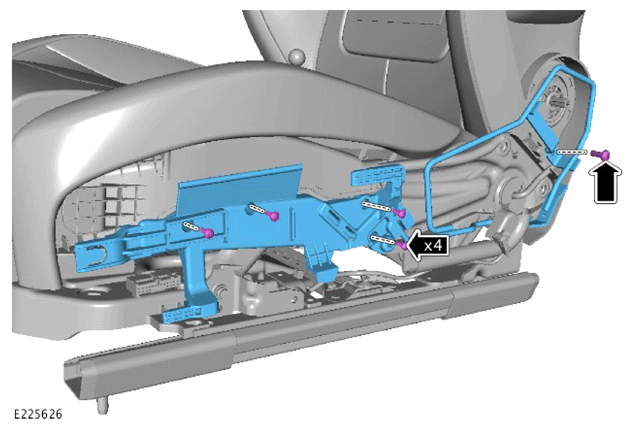

- Remove the 5 screws.
- Remove the seat control switchpack bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

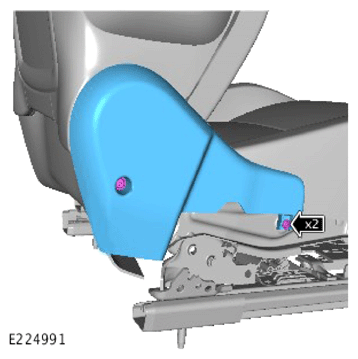

- Remove the 2 screws.
- Remove the trim panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

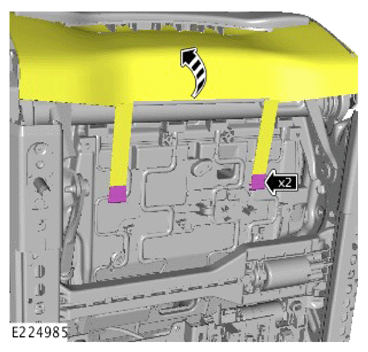

- Release the 2 lower tension straps from the front seat base.
- Reposition the backrest cover lower trim panel to gain access to the backrest cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

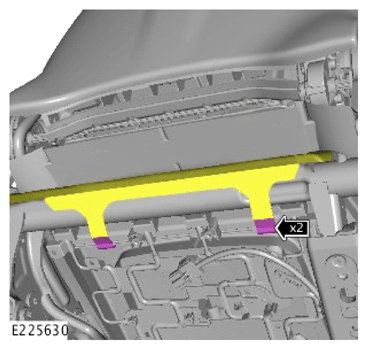

Release the 2 lower cushion cover clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

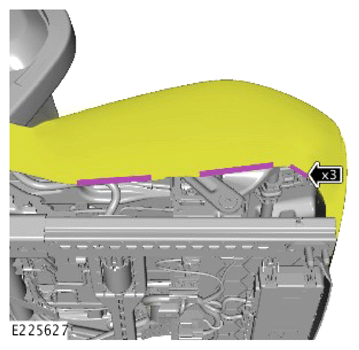

Release the 3 right cushion cover clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 3 left cushion cover clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

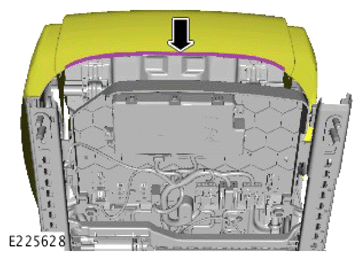

Release the front cushion cover clip.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

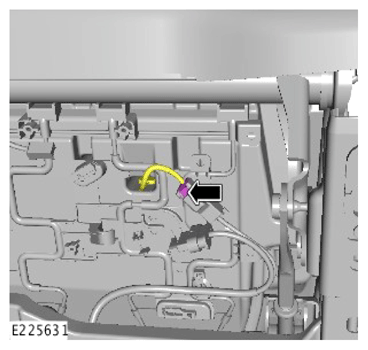

Disconnect the occupant detection sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

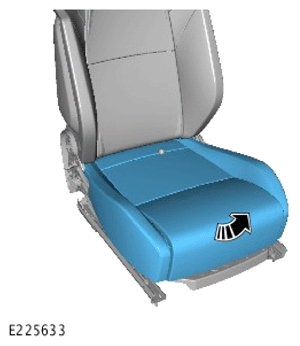

Remove the cushion assembly.
NOTE: Only perform the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

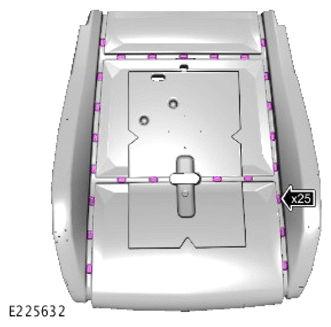

Using a suitable tool remove and discard the 25 hog rings.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

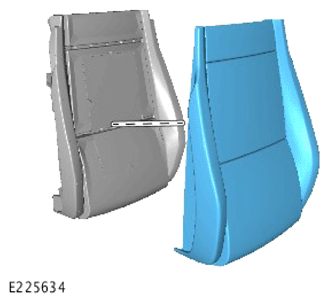

Remove the cushion cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

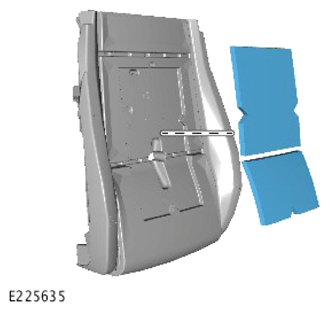

Remove the foam insert.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

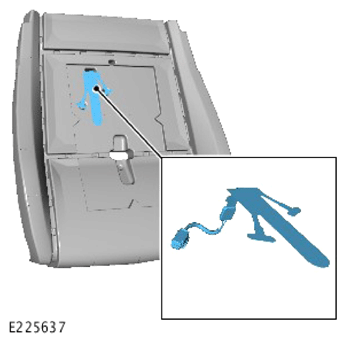

Remove the occupant detection sensor.
