Front Row Seat Cushion Cover - Project 8 (G2260427): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If equipped.

Install the occupant detection sensor.
Install 2. the foam insert.
Install the cushion cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

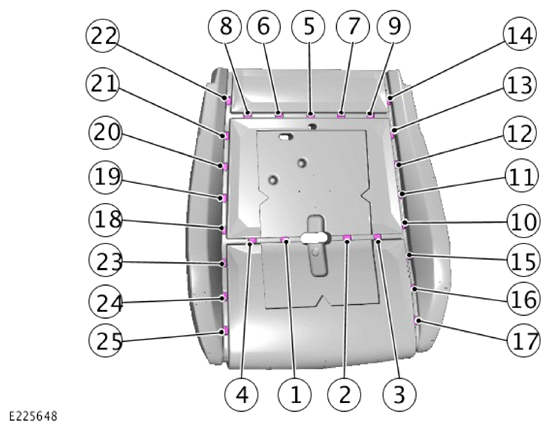

Using suitable hog ring pliers install the 25 new hot rings in the sequence shown.

General Equipment: Hog ring pliers

Renew Part: Hog rings Quantity: 25 .
Install the cushion assembly.
NOTE: If equipped.

Connect the occupant detection sensor.
Secure the front cushion cover clip.
Secure the 3 right cushion 8. cover clips.
Secure the 3 left cushion cover clips.
Secure the 2 lower cushion cover clips.
Secure the 2 lower tension straps from the front seat base.
- Install the trim panel.
- Install and tighten the 2 screws.
- Install the seat switchpack bracket.
- Install and tighten the 5 screws.
Install the front row seat control switchpack.
Refer to: FRONT ROW SEAT SWITCHPACK - PROJECT 8
Install the front row seat.

Refer to: FRONT ROW SEAT - PROJECT 8
