Front Row Seat Backrest Cover Trim Panel - Project 8 (G2260428): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Make the Supplementary Restraint System (SRS) safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
Remove the front row seat backrest cover.
Refer to: FRONT ROW SEAT BACKREST COVER - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the seat head restraint foam.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

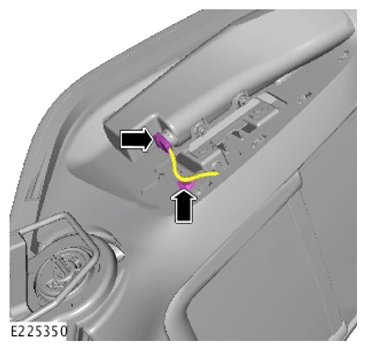

- Release the side airbag wiring harness clip.
- Disconnect the side airbag electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

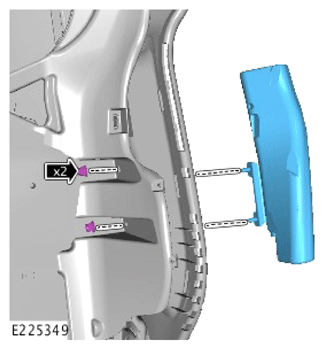

Remove the 2 nuts and the side airbag.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

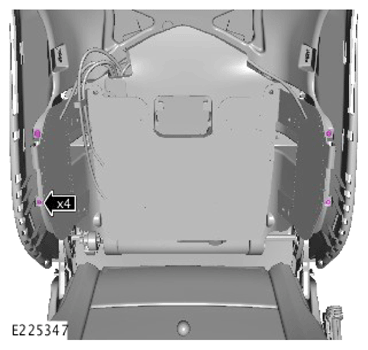

Remove the 4 lower seat backrest cover screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

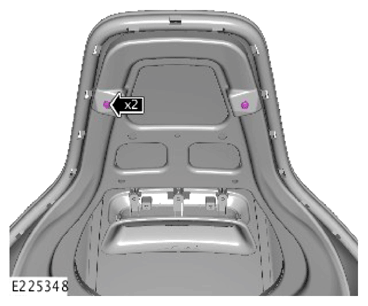

Remove the 2 upper seat backrest cover screws.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

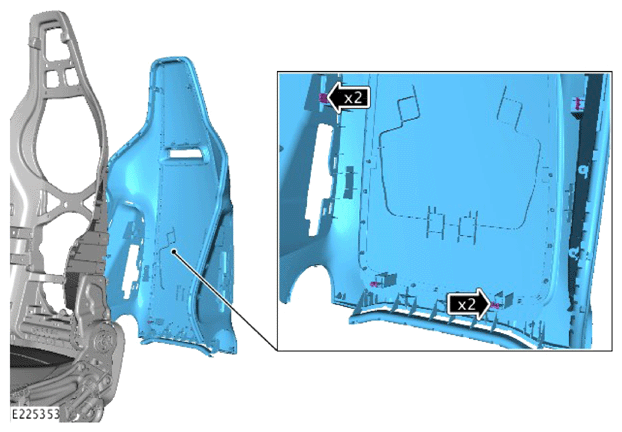

Remove the front row seat backrest cover trim panel from the seat assembly.
NOTE: Only do the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

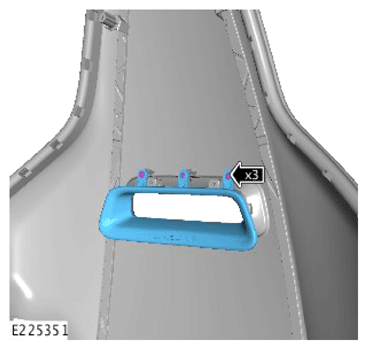

Remove the 3 screws and the seat backrest cover inner trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

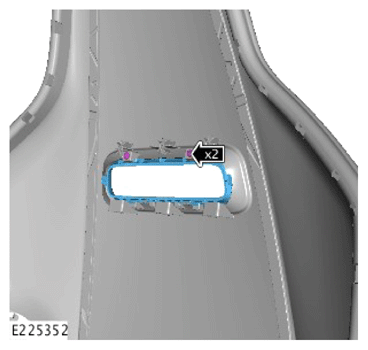

Remove the 2 screws and the seat backrest cover outer trim.
