Front Row Seat Backrest Cover - Project 8 (G2260426): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Make the Supplementary Restraint System (SRS) safe.
Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS
Remove the front row seat.
Refer to: FRONT ROW SEAT - PROJECT 8
Remove the front row seat control switchpack.
Refer to: FRONT ROW SEAT SWITCHPACK - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

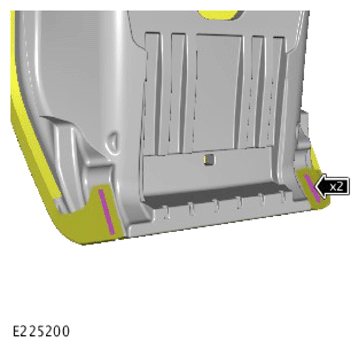

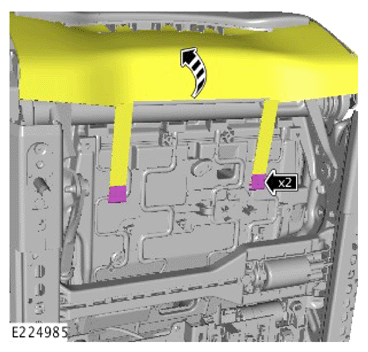

- Release the 2 lower tension straps from the front seat base.
- Reposition the backrest cover lower trim panel to gain access to the backrest cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

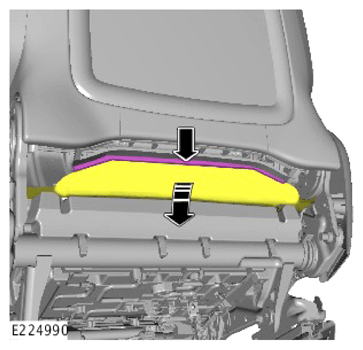

Release the front seat backrest cover from the backrest cover trim panel.
NOTE: Do not use excessive force to remove the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

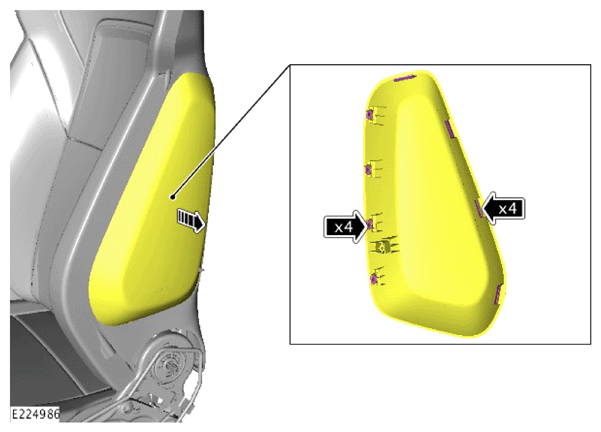

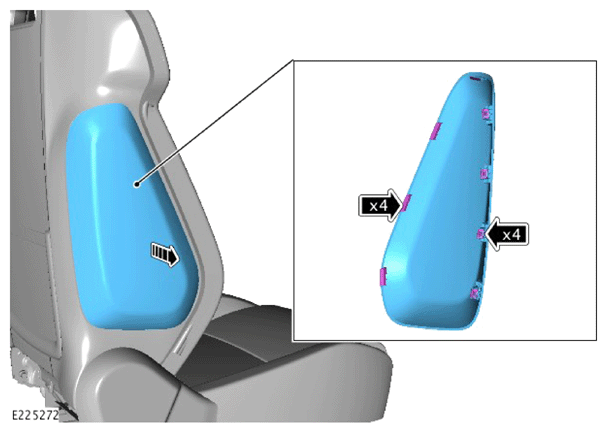

Release the airbag cover from the 8 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

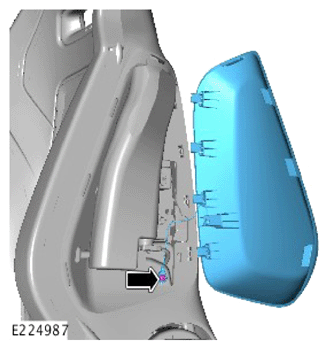

Remove the screw and the side airbag trim cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

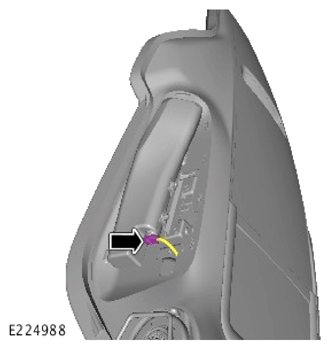

Disconnect the side airbag electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

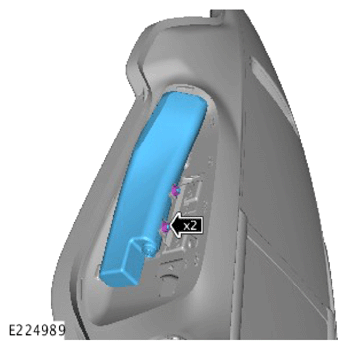

Remove the 2 side airbag nuts and the side airbag.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the side seat trim cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

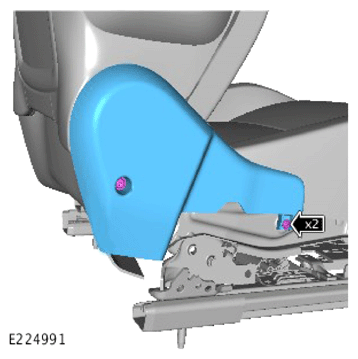

Remove the 2 screws and the trim panel.
NOTE: Note orientation of component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

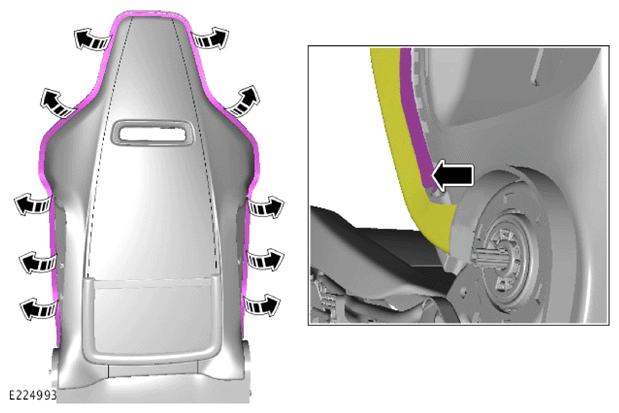

Release the front seat backrest cover from the trim panel.
NOTE: Do not use excessive force to remove the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

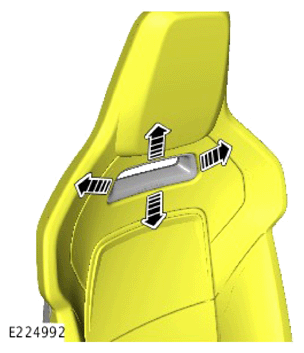

Release the front seat backrest cover from the upper trim.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

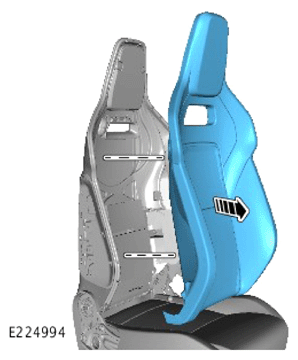

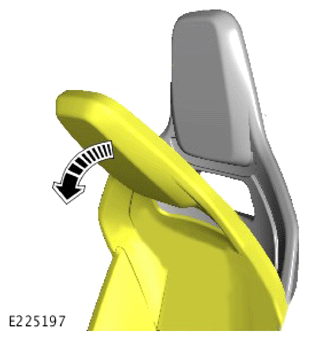

Remove the front row seat backrest cover from the seat assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

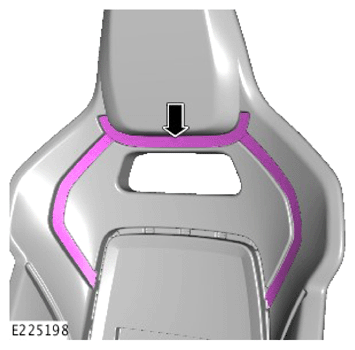

Release the upper seat cover from the cushion.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the upper seat cover from the velcro tab to gain access to the hog rings.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

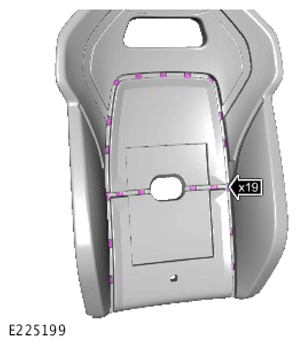

Using suitable pliers remove and discard the 19 hog rings.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the seat cover from the 2 lower velcro tabs.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

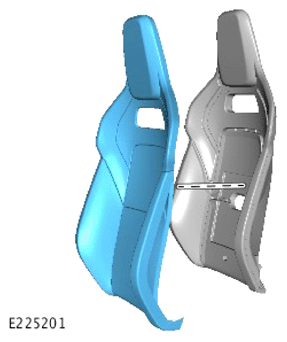

Remove the front row seat cover from the cushion.
