Front Row Seat - Project 8 (G2246711): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

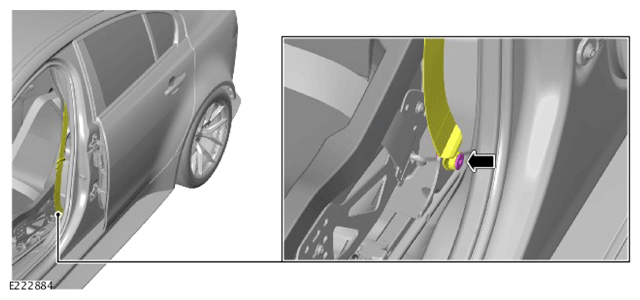

- Remove the bolt.
- Release the front row seatbelt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

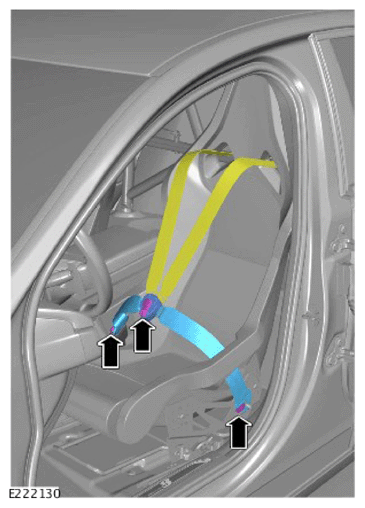

Release the 4-point harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

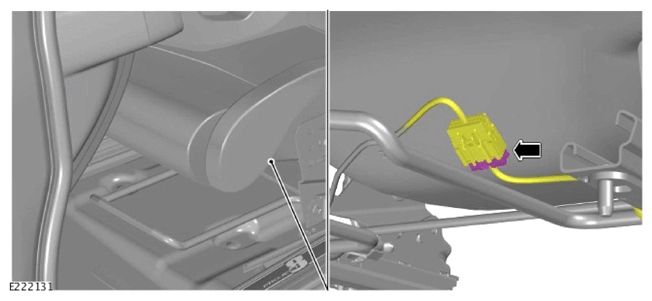

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

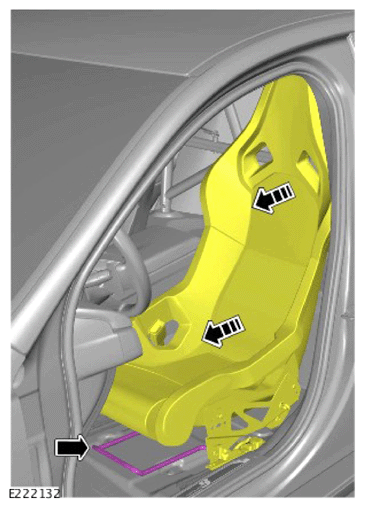

Position the front row seat forward.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

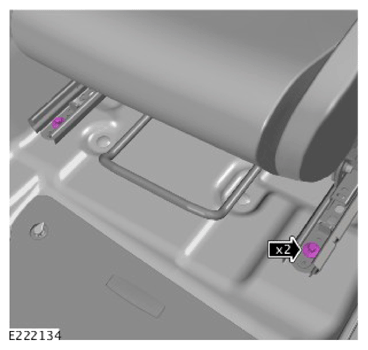

Remove the 2 front row seat track bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Position the front row seat backward.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

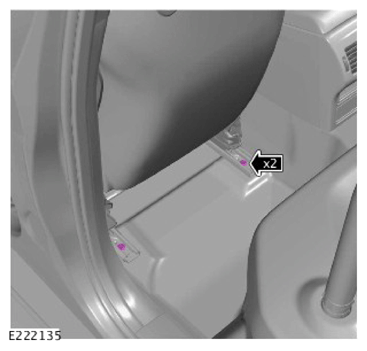

Remove the 2 front row seat track bolts.
CAUTION: Take extra care not to damage the surrounding components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

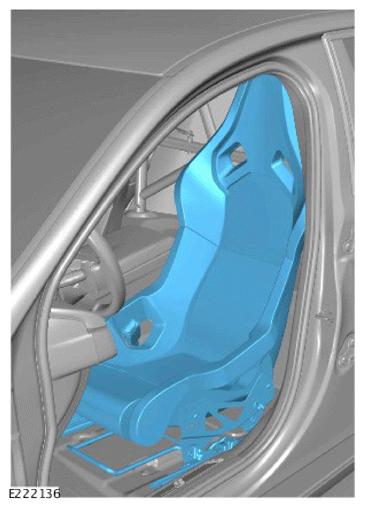

Remove the front row seat.
