Front Row Passenger Seat Cushion - Project 8 (G2260432): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failure to follow this instruction may result in personal injury.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

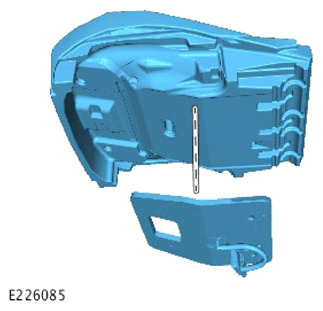

Install the Occupant Classification Sensor (OCS).
- CAUTION: Make sure the OCS is fitted correctly to through the hole in the seat base.
  Install the OCS.
- Install the 2 fasteners.
- Install the OCS to the seat base.
- Secure the pipe to the seat bracket
- Install the screw.
Connect the electrical 4. connector.
Install the front row seat cushion cover.

Refer to: FRONT ROW SEAT CUSHION COVER - PROJECT 8
