Front Row Passenger Seat Cushion (G1842040): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplementary restraints system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait for one minute. Failure to follow this instruction may result in personal injury.
  • Always wear safety glasses when working on an air bag equipped vehicle and when handling an air bag module. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of injury in the event of premature deployment, always carry a live air bag module with the bag and trim cover pointed away from the body. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of premature deployment, do not use radio key code savers when working on the supplemental restraint system. Failure to follow this instruction may result in personal injury.
  • To minimize the possibility of premature deployment, live air bag modules must only be placed on work benches which have been ground bonded and with the trim cover facing up. Failure to follow these instructions may result in personal injury.
  • Never probe the electrical connectors of air bag modules or any other supplemental restraint system component. Failure to follow this instruction may result in personal injury.
  • Painting over the driver air bag module trim cover or instrument panel could lead to deterioration of the trim cover and air bags. Do not for any reason attempt to paint discolored or damaged air bag module trim covers or instrument panel. Install a new component. Failure to follow this instruction may result in personal injury.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: FRONT ROW SEAT CUSHION COVER

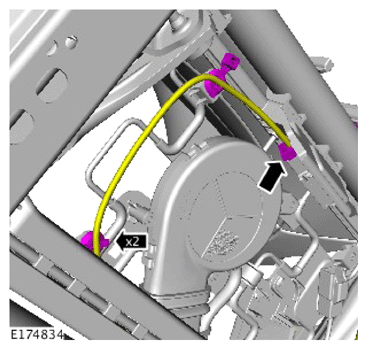

  2. G14010783Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

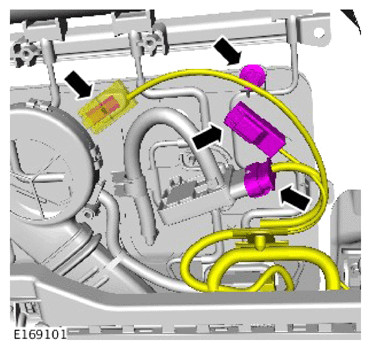

  3. G14010784Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

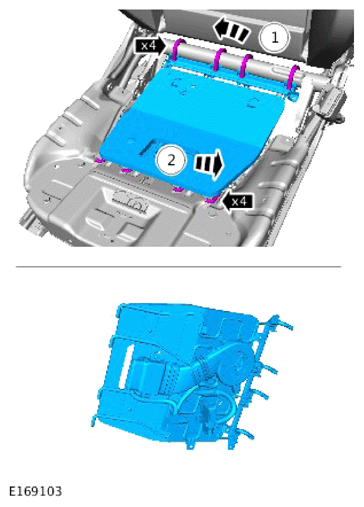

  4. G14010785Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

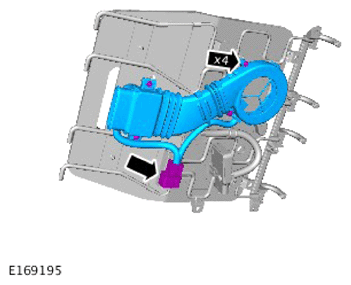

  5. G14010786Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

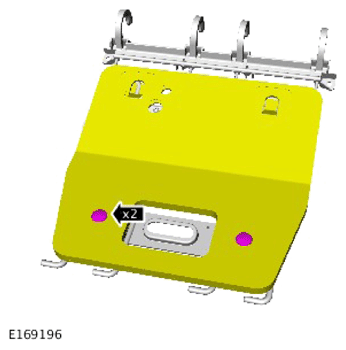

  6. G14010787Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. CAUTION:
    • Note the installed position of the component(s) prior to removal.
    • It is essential that the sensor is installed in the correct orientation as shown.
    • It is essential that the hose is installed in the correct orientation as shown.

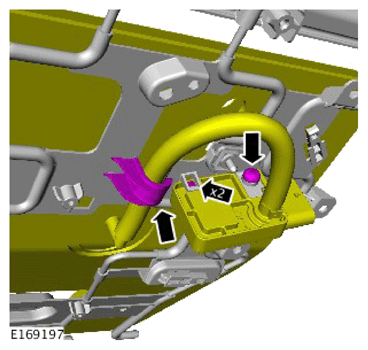

    G14010788Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 5Nm

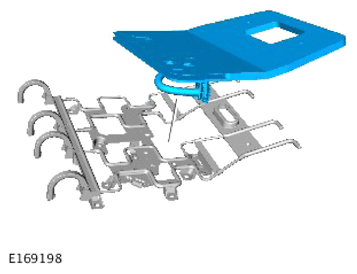

  8. G14010789Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

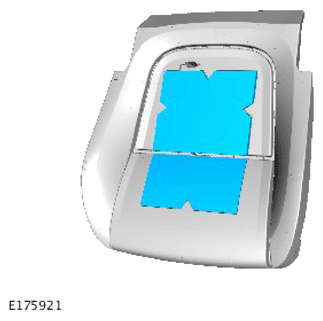

  9. G14010790Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
