Front Row Passenger Seat Cushion (G1842040): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failure to follow this instruction may result in personal injury.

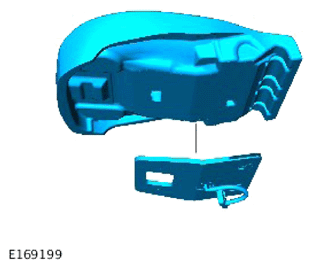

    G14010791Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  2. To install, reverse the 2. removal procedure.
  3. NOTE: Make sure that the front seats are empty during this process.
    • If a new service kit is installed, configure the occupant classification sensor using the approved Jaguar diagnostic tool and clear any DTCs.
    • If a repair has been carried out, reset the occupant classification sensor using the approved Jaguar diagnostic tool and clear any DTCs.
