Front Row Seat Height Adjustment Motor (G2833345): Repair

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to install individual components. Failure to follow this instruction may result in personal injury.
Edges of the seat frame are sharp and burry, make sure to wear cut proof gloves under the procedure. Failure to follow this instruction may result to personal injury.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.

Remove the front row seat cushion.
Refer to: FRONT ROW PASSENGER SEAT CUSHION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

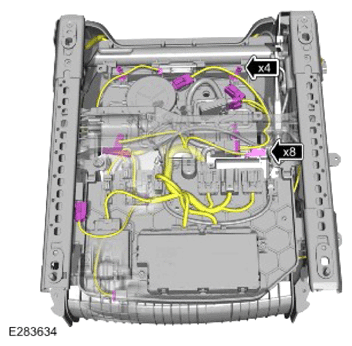

- Disconnect the 8 electrical connectors.
- Release the 4 wiring harness clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

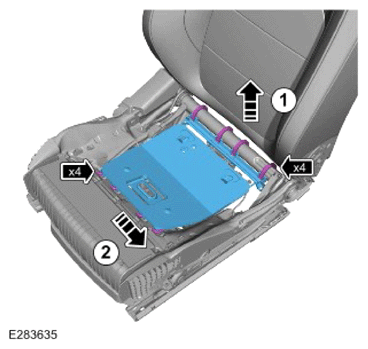

Remove the front row seat suspension mat.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

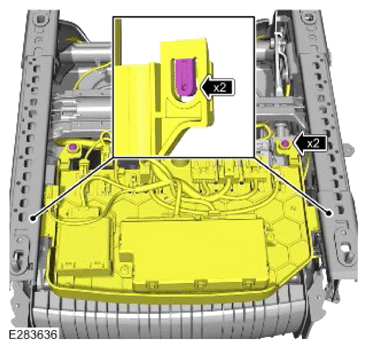

- Remove the 2 bolts.
- Release the front row seat module tray.
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

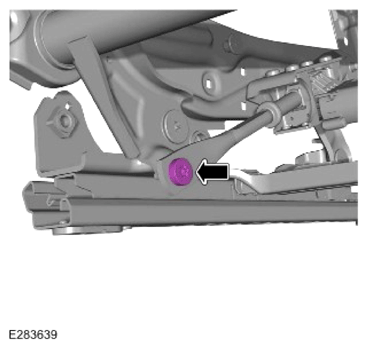

Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

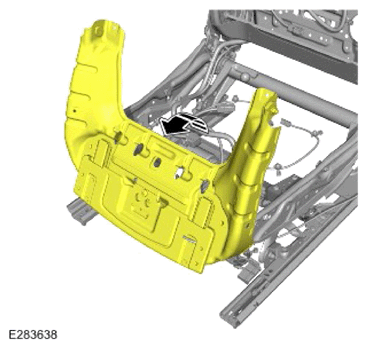

Release the front row seat frame.
CAUTION: Left hand thread.

NOTE: The frame will self-lift to highest position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

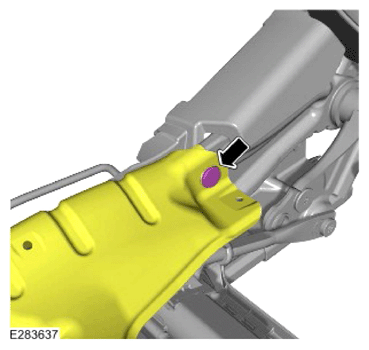

Remove the bolt.
NOTE: Depending on the seat specification, the height adjustment motor may be installed with 2 or 4 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

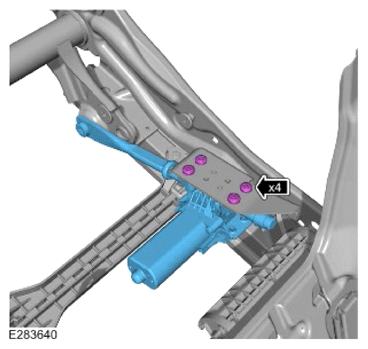

- Remove the 4 bolts.
- Remove the front row seat height adjustment motor.
NOTE: Depending on the seat specification, the height adjustment motor may be installed with 2 or 4 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the front row seat height adjustment motor.
- Install and tighten the 4 bolts.
  Torque : 10Nm
CAUTION: Left hand thread.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Position the height adjustment motor and install the bolt.
- Tighten the bolt.
  Torque : 28Nm
NOTE: Repeat this step for the other side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the front row seat frame.
- Install and tighten the bolt.
Torque : 10Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the front row seat module tray.
- Install and tighten the 2 bolts.
Torque : 2Nm
Install the front row seat 13. suspension mat.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Secure the 4 wiring harness clips.
- Connect the 8 electrical connectors.
Install the front row seat cushion.
Refer to: FRONT ROW PASSENGER SEAT CUSHION
