Front Row Seat Adjustment - Project 8 (G2297452): Check

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Make sure the seat is supported at all times.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure requires the aid of another technician.
  • This procedure contains illustrations for left side components, right side components are similar.

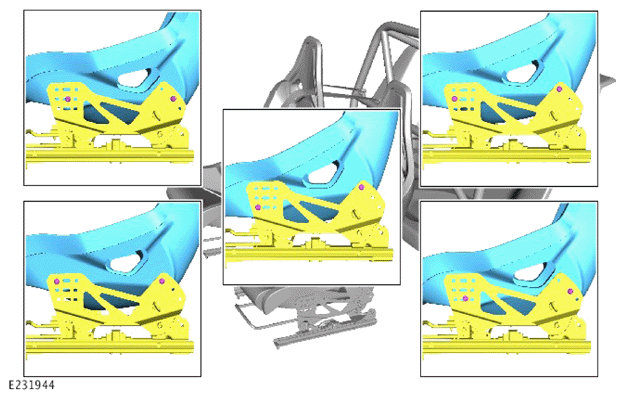

  1. WARNING: The positions illustrated are the only positions permitted for road use.
G14010457Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
