Front Row Seat Adjustment - Project 8 (G2297452): Adjustment

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure the seat is supported at all times.

NOTE:

This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure requires the aid of another technician.
This procedure contains illustrations for left side components, right side components are similar.

Remove the front row seat.
Refer to: FRONT ROW SEAT - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

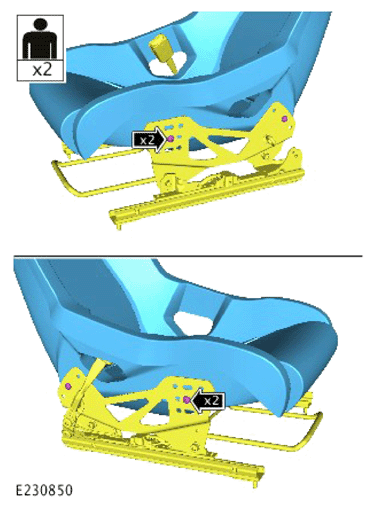

Remove and discard the 4 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

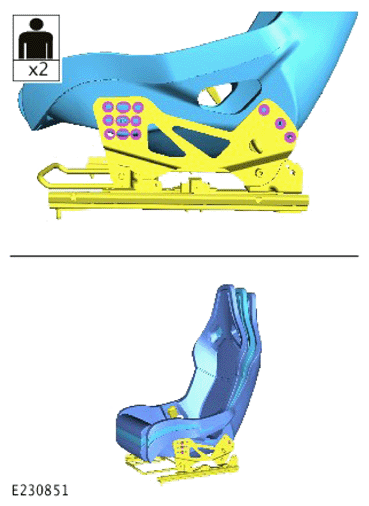

Move the seat to the required adjustment position.
Install and tighten the 4 new bolts.
Torque : 24Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

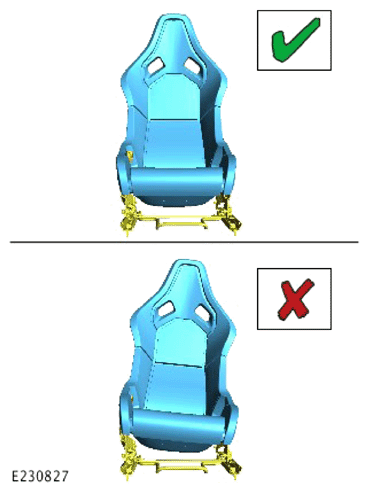

Make sure the seat is adjusted to the same position on both brackets. Failure to do so may cause damage to the seat.
Install the front row seat.
Refer to: FRONT ROW SEAT - PROJECT 8
