TED Functionality
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

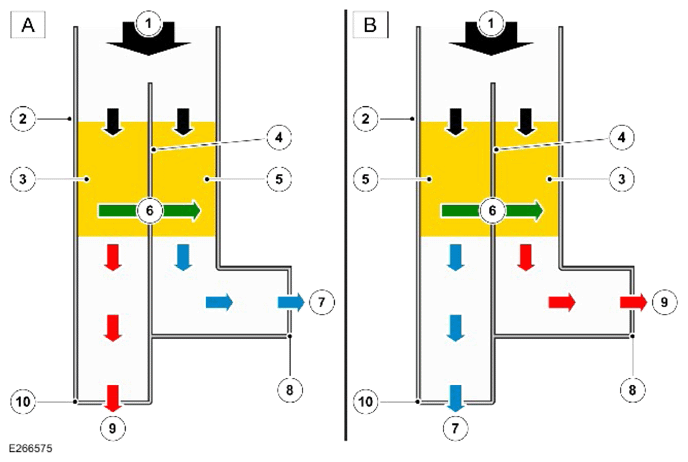

| KEY | A. OCCUPANT SELECTS COOLING FUNCTION | B. OCCUPANT SELECTS HEATING FUNCTION |
|---|---|---|
| 1. | Passenger compartment air | Passenger compartment air |
| 2. | Ducting | Ducting |
| 3. | Hot side of TED (the location changes depending on the selected function, cooling/heating) | Hot side of TED (the location changes depending on the selected function, cooling/heating) |
| 4. | TED | TED |
| 5. | Cold side of TED (the location changes depending on the selected function, cooling/heating) | Cold side of TED (the location changes depending on the selected function, cooling/heating) |
| 6. | Current | Current |
| 7. | Cold air to occupant (the location changes depending on the selected function, cooling/heating) | Cold exhaust air (the location changes depending on the selected function, cooling/heating) |
| 8. | Outlet to bellows | Outlet to bellows |
| 9. | Hot exhaust air (the location changes depending on the selected function, cooling/heating) | Hot air to Occupant (the location changes depending on the selected function, cooling/heating) |
| 10. | Exhaust | Exhaust |
NOTE:
On Range Rover (L405) 18MY onwards, the climate assemblies described below are only used for seat cooling. Heater mats are used for the heating functionality of the climate seats, thus if the customer symptom is specifically an issue with Range Rover (L405) 18MY onwards climate seat heating, please refer to the heater mat diagnostic and testing guide.
The seat base and seat backrest climate assemblies are wired in series and are connected to the HVAC through a seat climate control module. The seat climate control module monitors the fan speeds and temperatures of the TED's. Any faults detected in the seat base and/or seat backrest climate assemblies should trigger a DTC to be set by the HVAC . SYMPTOM CHARTS lists the potential symptoms that may be exhibited by the seat climate system and the steps that should be taken to rectify the faults.
NOTE:

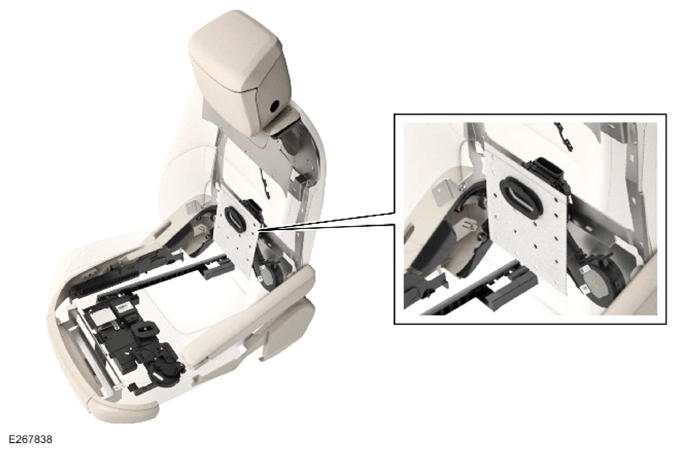

The image below shows the seat backrest bellows location
