Climate Assembly Description

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

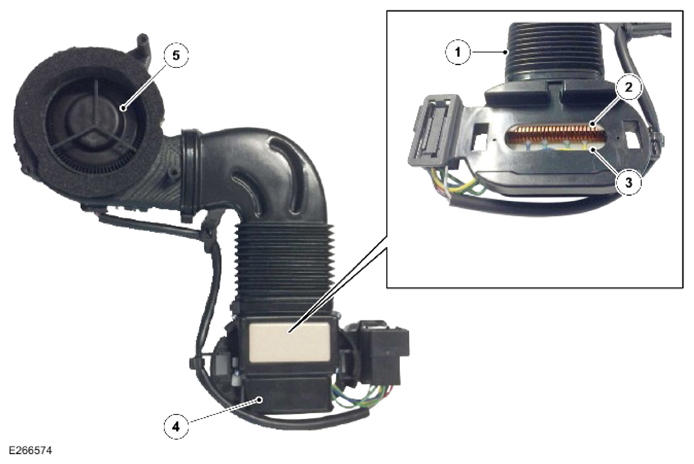

The image in the box shows the reverse side of the TED

G14010399Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC


KEY DESCRIPTION
1.
  • Ducting
2.
  • Outlet side of TED
3.
  • Outlet to bellows
4.
  • Exhaust
5.
  • Air intake and fan
