Wavy Seam Lines

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Waviness appearance on the bottom corner of the seat bolster cannot be worse that the following images.

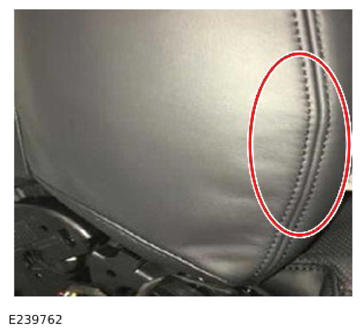

G14010421Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

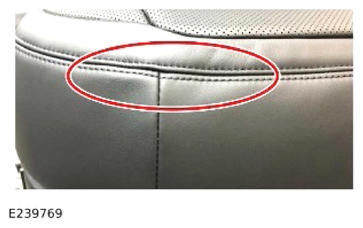

G14010422Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

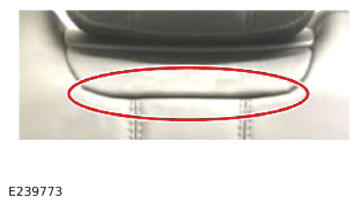

G14010423Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
