Seat Backrest Creasing

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

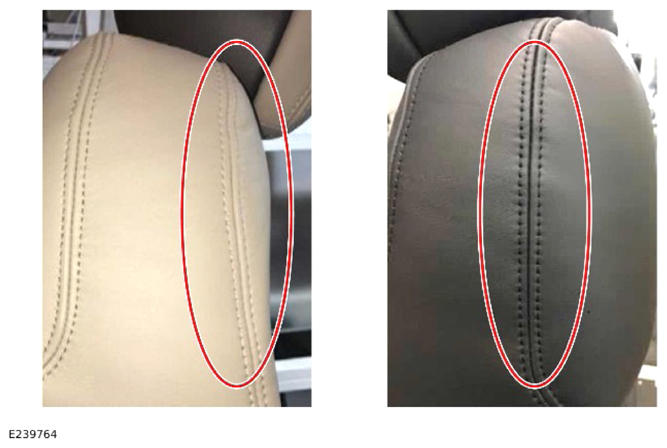

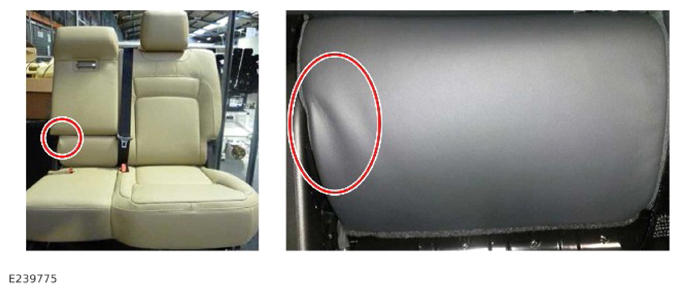

Backrest at the rear of the head restraint cannot be worse than the following images.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

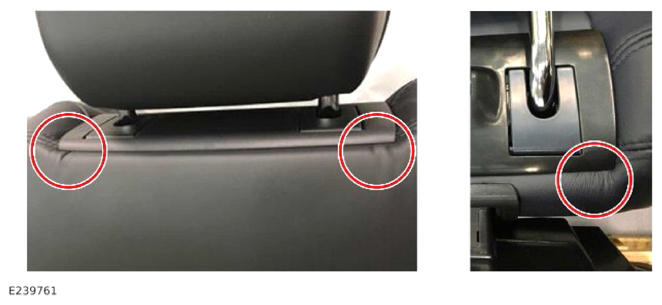

Creasing around the seatbelt stalk cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

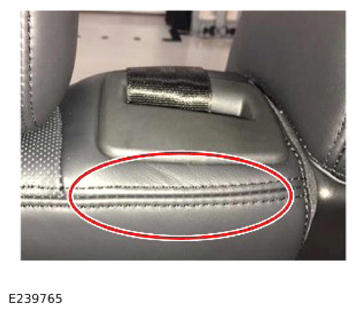

The centre back section on the seat backrest cannot be any worse than the following images.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

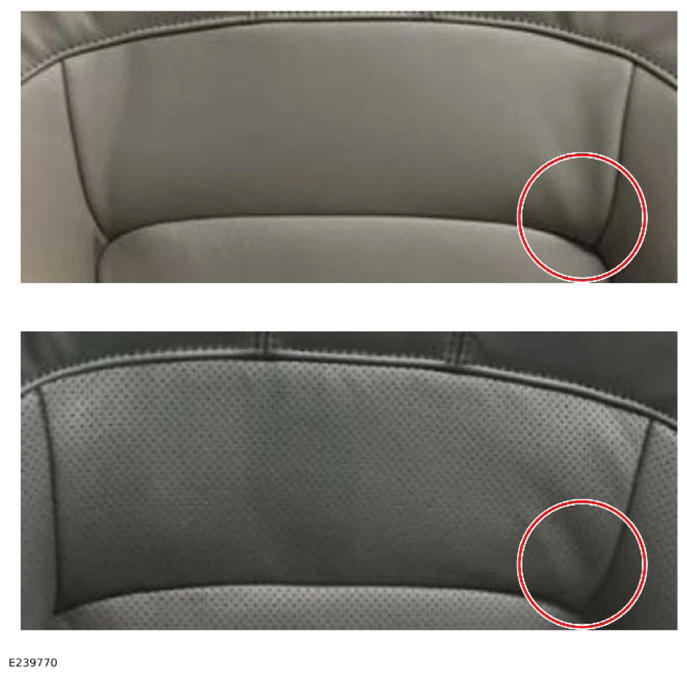

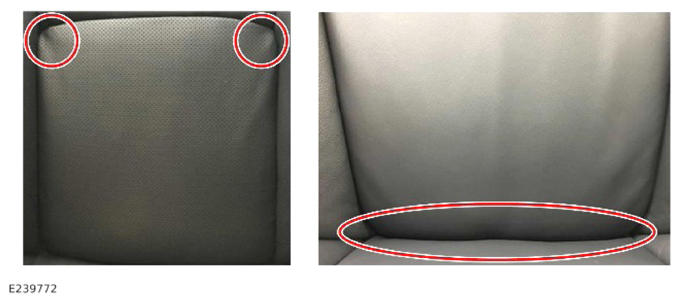

The square back section on the seat backrest cannot be worse than the following images.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

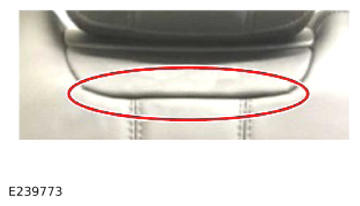

The front panel below the head restraint may appear to be wavy, it cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

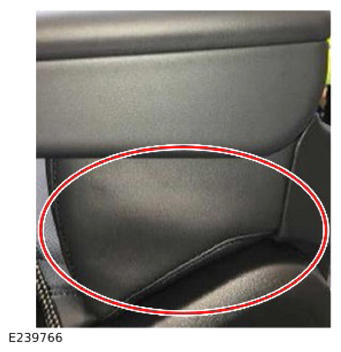

The area below the lower armrest cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Backrest side (armrest side rear face) creasing sewing variation in radius cannot be worse than the following images.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

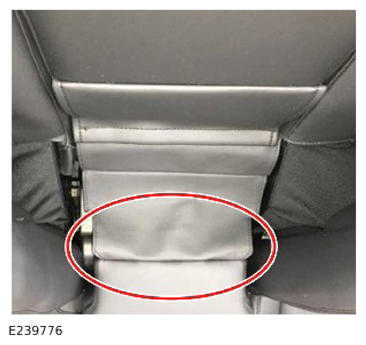

Creasing between the bottom of the seat and the armrest cannot be worse than the following image.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Creasing armrest gap is not a defect due to the folding operation of the armrest.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
