Seat Adjustment - Performance Seats
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

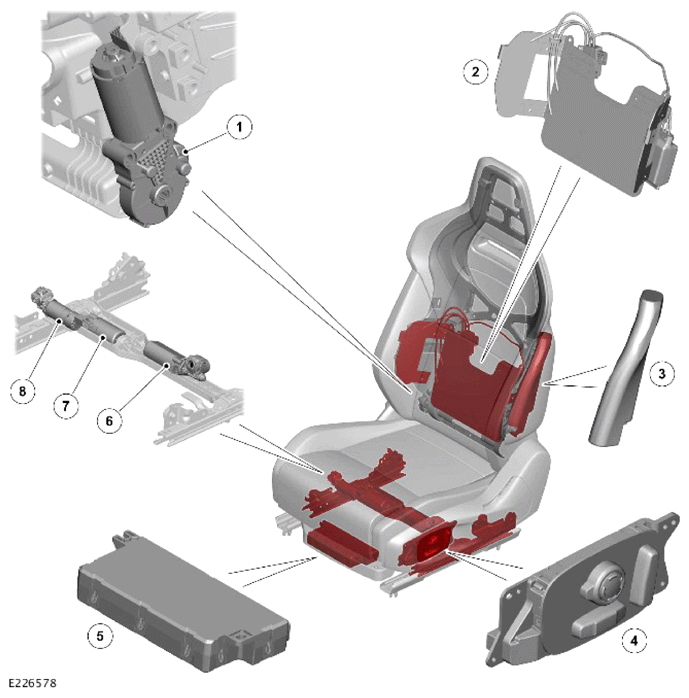

| ITEM | DESCRIPTION |
|---|---|
| 1 | Seat backrest recline motor |
| 2 | Lumbar assembly |
| 3 | Side airbag |
| 4 | Driver seat switchpack |
| 5 | Driver Seat Module (DSM) |
| 6 | Seat height motor |
| 7 | Seat forward/rearward motor |
| 8 | Seat cushion tilt motor |
There is a separate motor for each seat adjustment axis. The switches of the driver seat switchpack operate the motors.
Seat position is monitored by the related seat module using inputs from Hall effect sensors in the seat adjustment motors. This prevents the seat from being adjusted to a position that will contact the surrounding interior trim (clash avoidance).
