Rear Seats
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

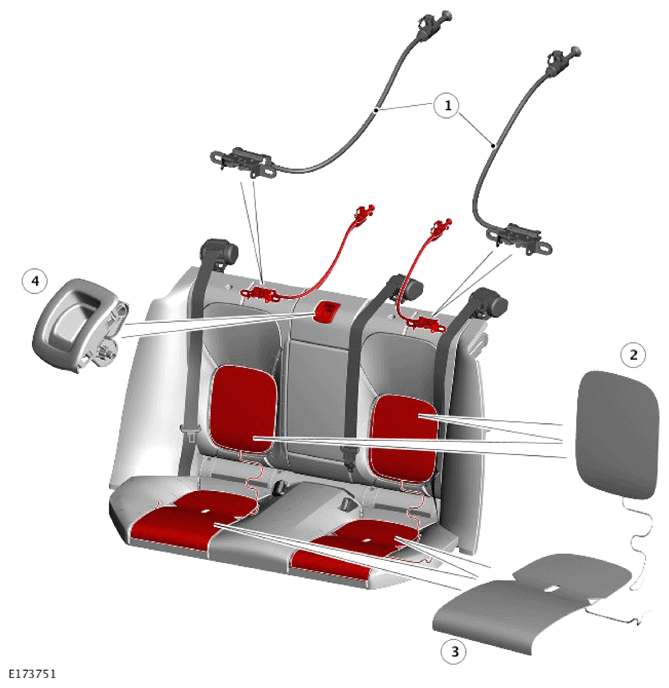

| ITEM | DESCRIPTION |
|---|---|
| 1 | Seat Release Cable |
| 2 | Backrest Heater Element |
| 3 | Cushion Heater Element |
| 4 | Center Seat Release Catch |
The controls for rear seats with heaters are on the rear.
The rear seat release mechanism is accessible from the luggage compartment.
The central 20 % section is released using a lever on the top of the seat.
