Electric Front Seat Controls
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

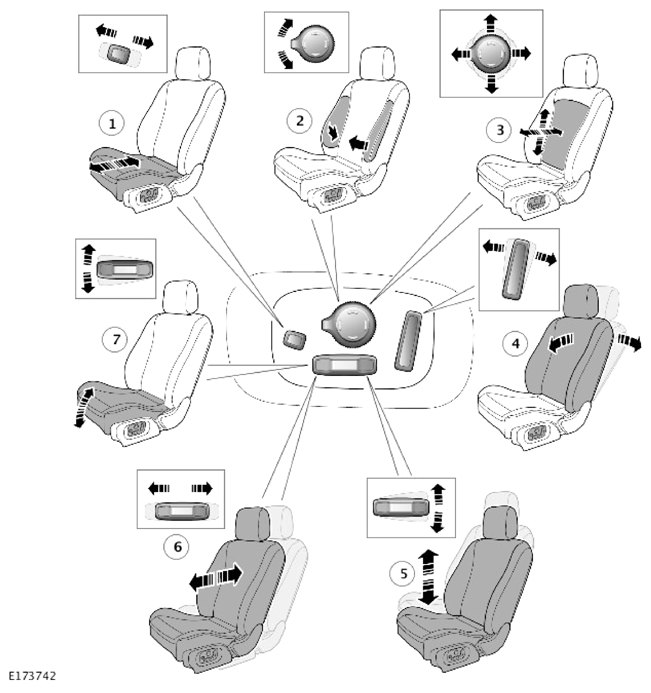

| ITEM | DESCRIPTION |
|---|---|
| 1 | Cushion length adjustment |
| 2 | Bolster adjustment |
| 3 | Lumbar support |
| 4 | Backrest angle adjustment |
| 5 | Height adjustment |
| 6 | Forward and rearward adjustment |
| 7 | Cushion front tilt adjustment |
All of the seat adjustments are controlled from the seat switchpack on the outside of the seat cushion. The switches are connected to the adjustment motors via the driver and/or passenger seat modules.
Seat position is monitored by the related seat module using inputs from Hall sensors in the seat adjustment motors. This prevents the seat from being adjusted to a position that will contact the surrounding interior trim (clash avoidance).
Selections on the seat adjustment and memory switches are transmitted on a Local Interconnect Network (LIN) bus to the related seat control module.
Each seat memory can be configured for three positions, which are set using the seat memory switches and stored in the individual seat module.
