Non Memory Electric Seat
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

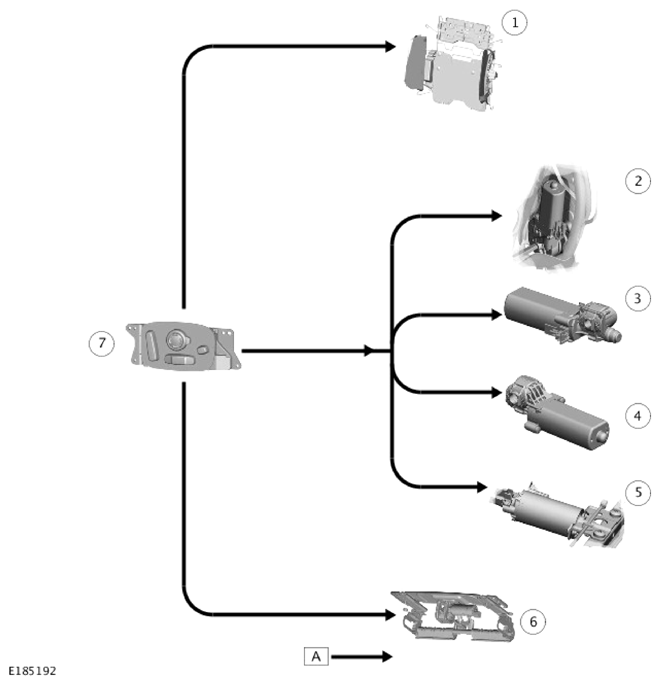

NOTE:
Driver seat shown, Passenger seat is similar.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED.
| ITEM |
DESCRIPTION |
| 1 |
Seat lumbar assembly |
| 2 |
Seat backrest recline motor |
| 3 |
Seat cushion tilt motor |
| 4 |
Seat height motor |
| 5 |
Seat forward/rearward motor |
| 6 |
Seat cushion extension motor |
| 7 |
Driver seat switchpack |
