Memory Electric Seat
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

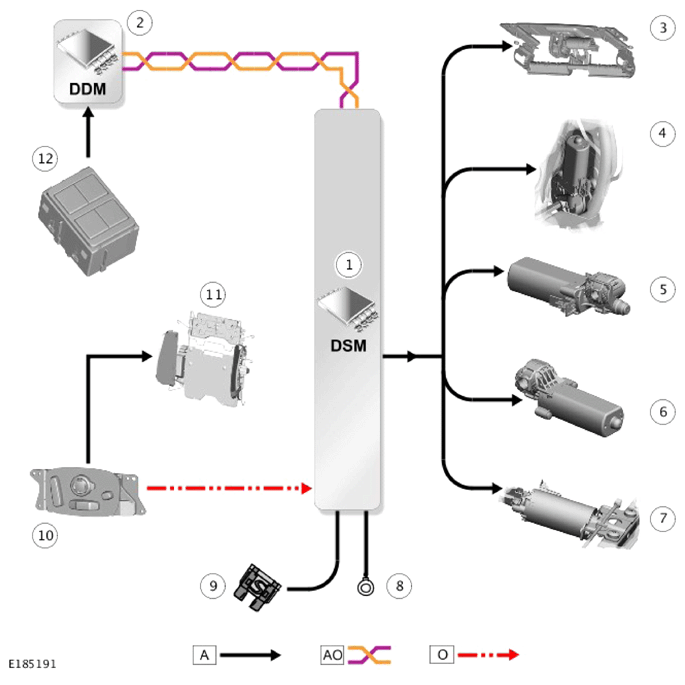

A = HARDWIRED; AO = MS CAN BODY SYSTEMS BUS; O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Driver Seat Module (DSM) |
| 2 | Driver Door Module (DDM) |
| 3 | Seat cushion extension motor |
| 4 | Seat backrest recline motor |
| 5 | Seat cushion tilt motor |
| 6 | Seat height motor |
| 7 | Seat forward/rearward motor |
| 8 | Ground |
| 9 | Power supply |
| 10 | Seat memory switchpack |
| 11 | Seat lumbar assembly |
| 12 | Seat memory switchpack |
