Heated Rear Seat
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

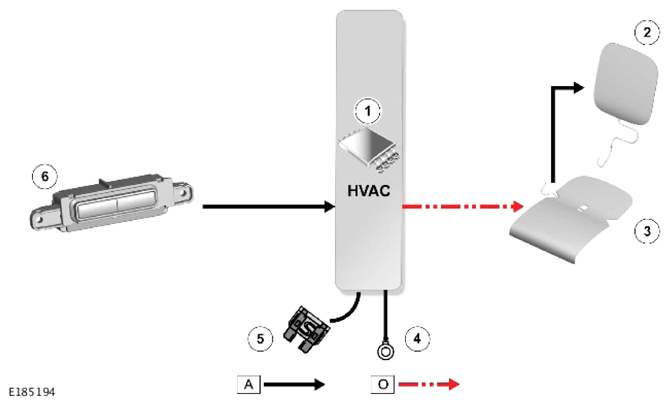

A = HARDWIRED; O = LIN BUS.
| ITEM |
DESCRIPTION |
| 1 |
HVAC control module (HVAC) |
| 2 |
Heated seat backrest element |
| 3 |
Seat Heater Control Module (SHCM) (integrated in heater element) |
| 4 |
Ground |
| 5 |
Power supply |
| 6 |
Seat heater switch - rear seat |
