Climate Seat
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

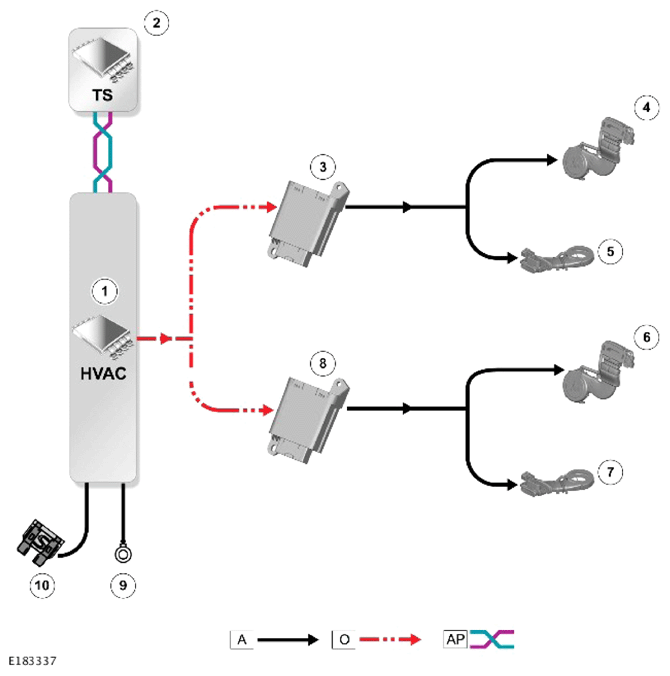

A = HARDWIRED; O = LIN BUS; AP = MEDIUM SPEED (MS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | HVAC control module (HVAC) |
| 2 | Touch Screen (TS) |
| 3 | Driver Seat Climate Control Module (DSCCM) |
| 4 | Climate seat backrest - driver |
| 5 | Climate seat cushion - driver |
| 6 | Climate seat backrest - passenger |
| 7 | Climate seat cushion - passenger |
| 8 | Passenger Seat Climate Control Module (PSCCM) |
| 9 | Ground |
| 10 | Power supply |
