Torque Specifications
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|

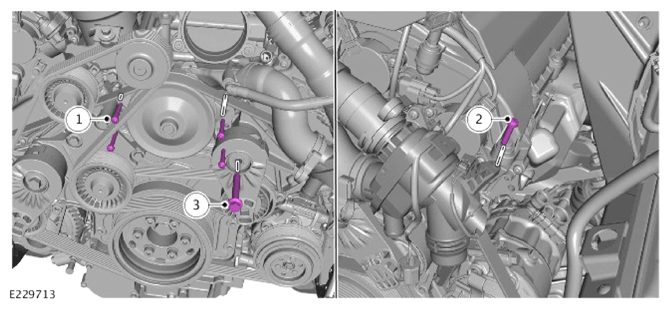

| 1 | Coolant pump retaining bolts | 12 | 9 | - |
| 2 | Thermostat housing bolt | 10 | - | 88 |
| 3 | Accessory drive belt tensioner bolt | 40 | 30 | - |

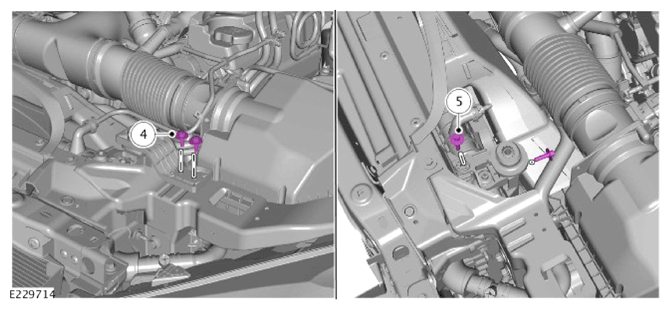

| 4 | Radiator mounting bolts | 9 | - | 80 |
| 5 | Radiator secondary bracket bolts | 9 | - | 80 |

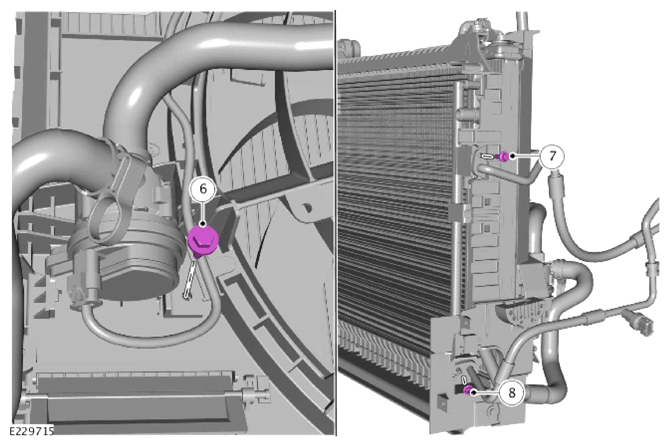

| 6 | Auxiliary coolant pump bolt | 9 | - | 80 |
| 7 | Upper Air Conditioning (A/C) pipe bolt | 20 | 15 | - |
| 8 | Lower A/C pipe nut | 20 | 15 | - |

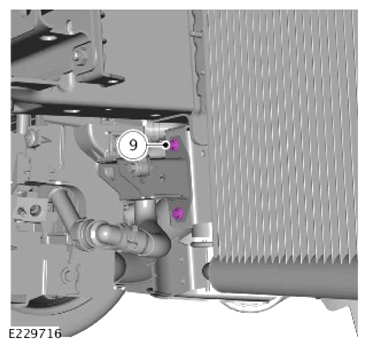

| 9 | Cooling module mounting bracket bolts | 9 | 80 |
