Radiator (G2244105): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Remove the cooling fan motor and shroud.

    Refer to: ELECTRIC COOLING FAN AND SHROUD

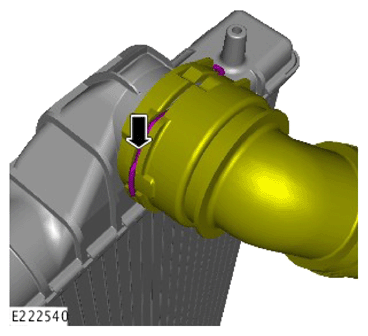

  4. G14002837Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the coolant hose from the radiator.

  5. G11307268Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the radiator from the cooling module assembly.
