Cylinder Head Coolant Outlet Pipe (G2732374): Removal
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Be prepared to collect escaping coolant.
CAUTION:
before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the supercharger.
Refer to: SUPERCHARGER - V6 S/C 3.0L Petrol
Refer to: SUPERCHARGER - V8 S/C 5.0L Petrol

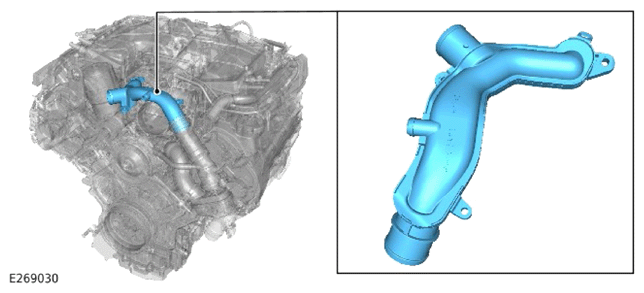

Discard the upper pipe.

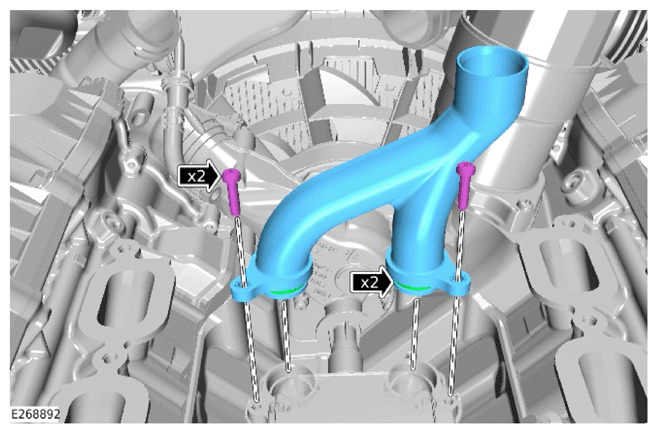

- Remove the 2 bolts.
- Remove and discard the lower pipe.
