Cooling Module - Project 8 (G2248476): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Cooling fans may continue to operate after the engine is turned off. They may also start to operate after the engine is turned off and continue operating for up to 10 minutes.
Be prepared to collect escaping coolant.

CAUTION: before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle using a suitable 2 post lift.
Refer to: LIFTING
Evacuate the Air Conditioning (A/C) system.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - PROJECT 8
Remove the front bumper.
Refer to: FRONT BUMPER
Drain the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Remove the air filter outlet pipe T-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the air duct from the air filter assembly.
- Repeat this step for the other side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

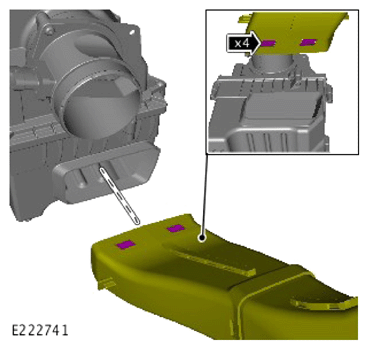

- Remove the 4 screws.
- Remove the air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

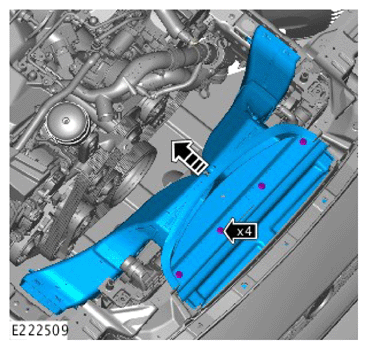

- Remove the 4 bolts.
- Remove the 2 mounting brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the right side lower coolant hose from the radiator and release the 2 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 4 coolant hose clips from the electric cooling fan shroud.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the left side coolant hose from the radiator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector from the charge air coolant pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the hose from the charge air radiator and release the clip.
- Remove the bolt and reposition the charge air coolant pump away from the cooling module.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the degas pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the right side upper coolant hose from the radiator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the left side coolant hose from the charge air radiator.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the nut and disconnect the lower A/C pipe from the condenser.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

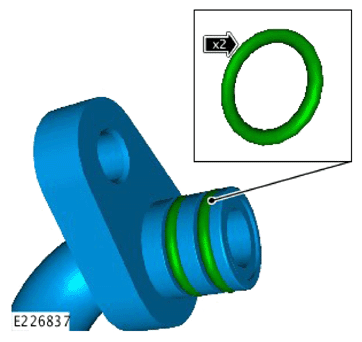

Remove and discard the 2 seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the bolt and disconnect the upper A/C pipe from the condenser.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 2 seals.
CAUTION: Make sure that the cooling module is supported for this step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 left side mounting bolts.
CAUTION: Make sure that the cooling module is supported for this step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 right side mounting bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cooling module.
