Coolant Pump (G2244104): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all components must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Partially drain the coolant system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the supercharger belt.
Refer to: SUPERCHARGER BELT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

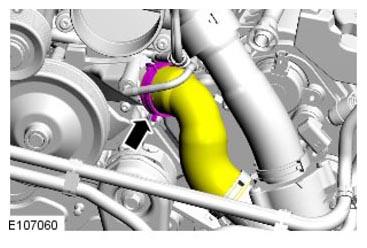

- Release the hose clamp.
- Release the coolant hose from the coolant pump.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

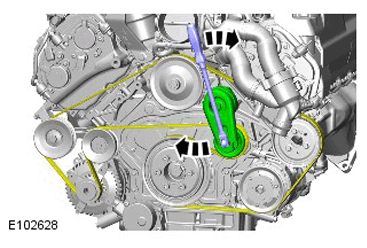

Release the accessory drive belt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the accessory drive belt tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

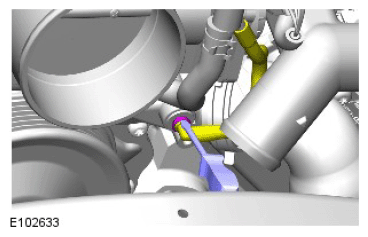

Using a suitable tool remove the coolant pump pipe.
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

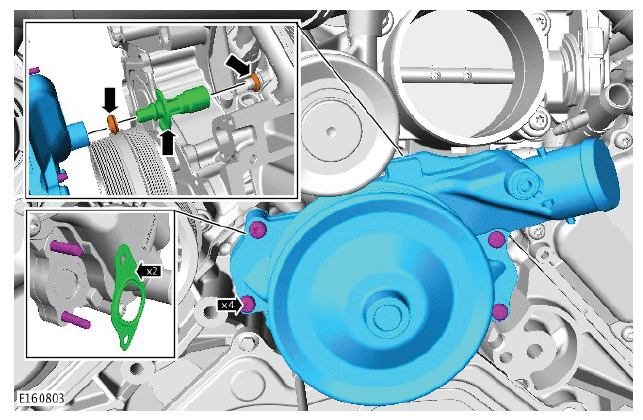

Remove the 4 bolts.
Remove the coolant pump.
Remove and discard the O-ring seals.
Remove and discard the gaskets.
