Cooling System Partial Draining And Vacuum Filling (G2259014): Draining

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Injury such as scalding could be caused by escaping steam or coolant. Make sure the vehicle cooling system is cool prior to carrying out this procedure.

CAUTION:

The engine cooling system must be maintained with the correct concentration and type of engine coolant solution to prevent corrosion and frost damage. Failure to follow this instruction may result in damage to the engine.
Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

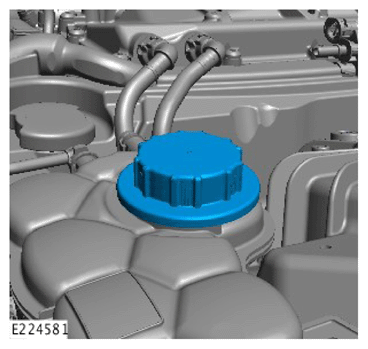

Remove the cap from the coolant expansion tank.
Remove engine undershield
Refer to: ENGINE UNDERSHIELD - PROJECT 8
NOTE:
- Be prepared to collect escaping coolant.
- The coolant is to be reused.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

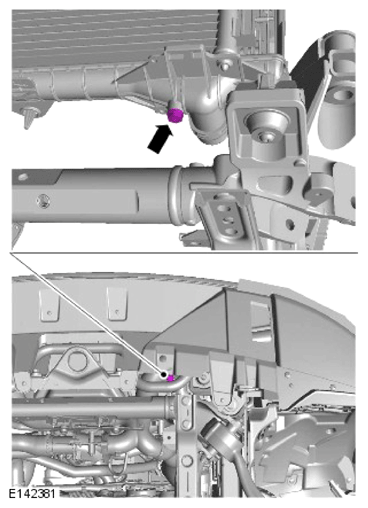

- Remove the radiator drain plug.
- Collect the escaping coolant in a suitable container.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the radiator drain plug.

Torque : 5Nm
