Cooling System Draining And Vacuum Filling (G2247224): Draining
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Injury such as scalding could be caused by escaping steam or coolant. Make sure the vehicle cooling system is cool prior to carrying out this procedure.
- Make sure the engine is not running and vehicle cooling system is cool prior to doing this procedure.
- Be prepared to collect escaping coolant.
CAUTION:
Engine coolant will damage the paint finished surfaces. If spilt, immediately remove the coolant and clean the area with water.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.

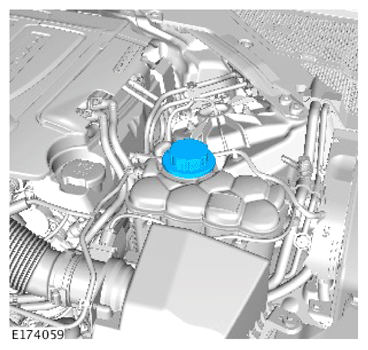

- Cover the expansion tank cap with a thick cloth and release the cooling system pressure by slowly turning the coolant expansion tank cap a quarter of a turn.
- Remove the expansion tank cap.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - PROJECT 8
- Remove the radiator drain plug.
- Allow the coolant to drain into a suitable container.
Install the drain plug.
Torque : 3.5Nm
