Heater Manifold
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

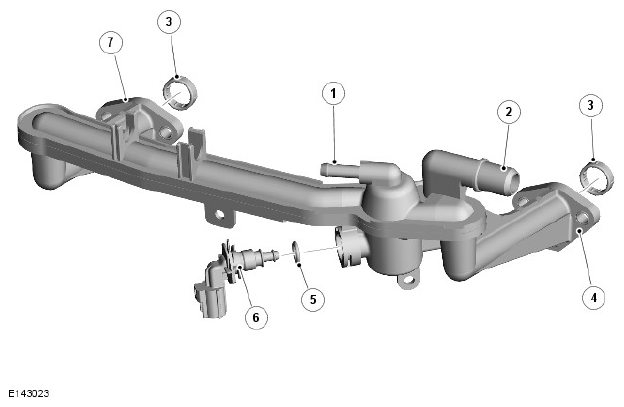

| ITEM | DESCRIPTION |
|---|---|
| 1 | Throttle body heater hose connection |
| 2 | Heater core supply hose connection |
| 3 | Seal (quantity 2) |
| 4 | Cylinder head connection - Bank 1 |
| 5 | O-ring seal |
| 6 | Engine Coolant Temperature (ECT) sensor 1 |
| 7 | Cylinder head connection - Bank 2 |
The heater manifold is connected to the rear of each cylinder head. Hot engine coolant from the engine is routed through the manifold into the heater core.
