Engine Coolant Pump
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

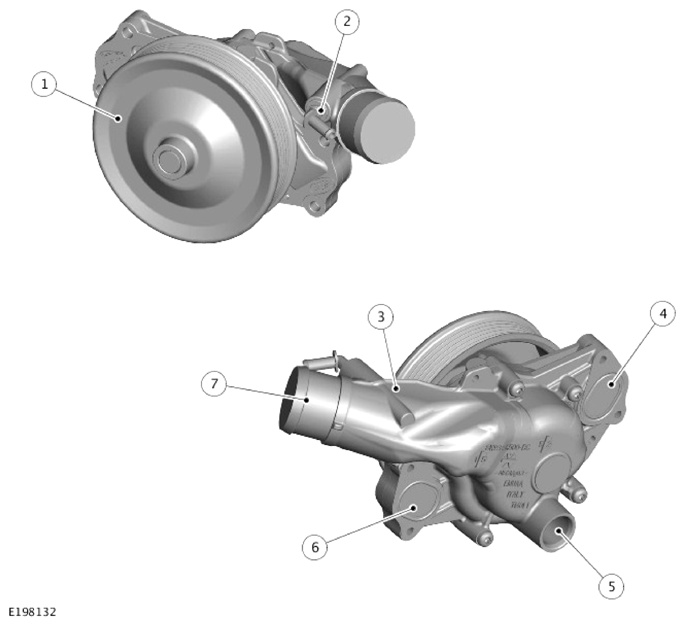

| ITEM | DESCRIPTION |
|---|---|
| 1 | Pulley |
| 2 | Bleed pipe connection (containing check valve) |
| 3 | Engine coolant pump body |
| 4 | Engine coolant outlet to cylinder head flange connection - Bank 1 |
| 5 | Hose connection - Oil cooler |
| 6 | Engine coolant outlet to cylinder head flange connection - Bank 2 |
| 7 | Engine coolant inlet hose connection |
The body of the engine coolant pump contains an impeller attached to a shaft supported in a bearing assembly. The impeller is driven by a pulley, pressed on to the front of the shaft, which is driven by the accessory drive belt. For additional information, refer to: ACCESSORY DRIVE
There are 2 outlet flanges for the engine coolant that attach the coolant pump to the front of the cylinder heads. A bleed connector is installed in the front of the coolant pump, adjacent to the engine coolant inlet connection from the thermostat. A check valve is incorporated into the bleed connection.
