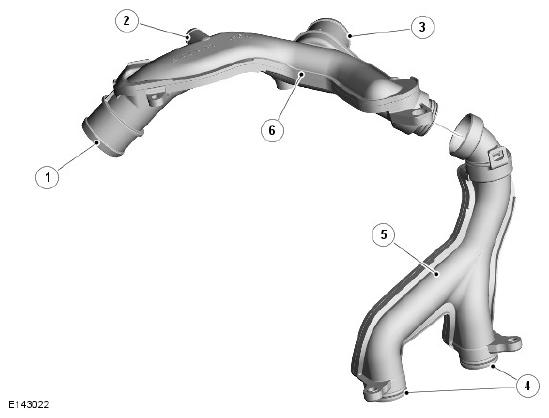

Engine Coolant Outlet
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Thermostat hose connection |
| 2 |
Blanking plug |
| 3 |
Radiator upper hose connection |
| 4 |
Cylinder block connection |
| 5 |
Engine coolant outlet |
| 6 |
Engine coolant supply |
