Charge Air Cooler

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

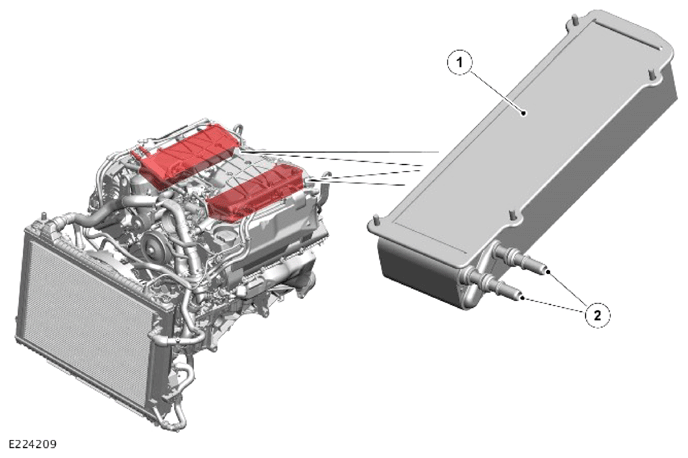

G14002863Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
ITEM DESCRIPTION
1 Charge air cooler
2 Engine coolant pipe connections

A charge air cooler is installed in each intake manifold. For additional information, Refer to: INTAKE AIR DISTRIBUTION AND FILTERING
